Aluminum GU10 Surface Mounted Spotlight Manufacturer
> Die-cast aluminum housing for durable indoor use
> Single-head and double-head options available
> Optional built-in on/off switch
> Adjustable lamp heads for directional lighting
> Compatible with replaceable GU10 bulbs
> OEM/ODM support for lighting distributors
Factory-Direct
CE & RoHS
2 Years
OEM/ODM
White and Black Finish Options
Available in white and black finishes to match different interior styles and project requirements.

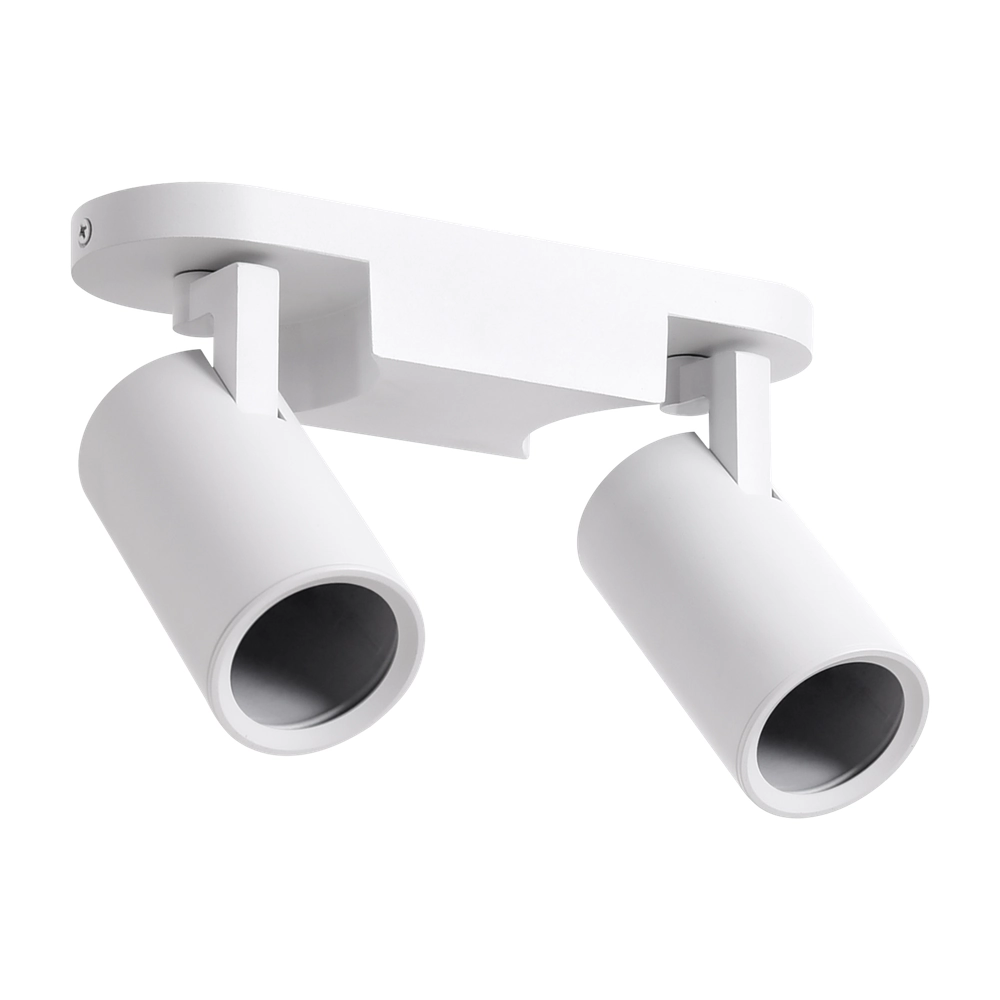

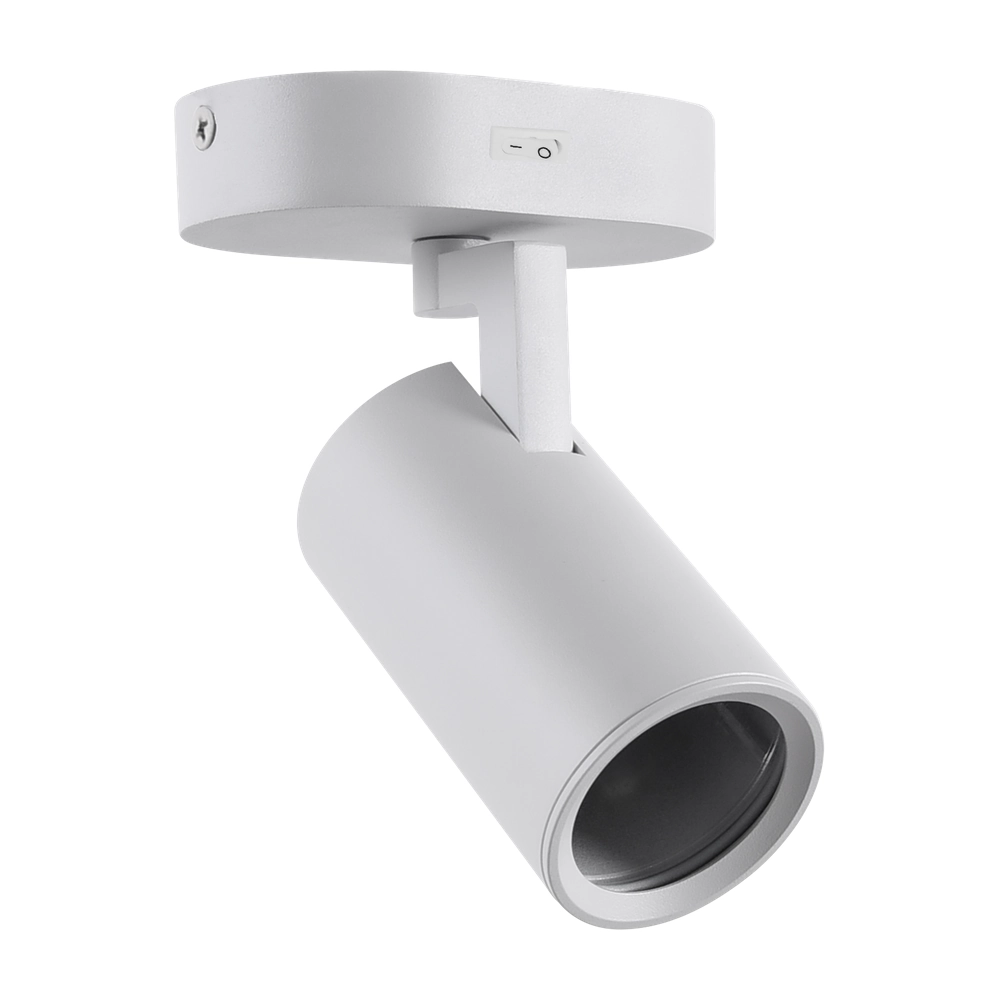

White Finish

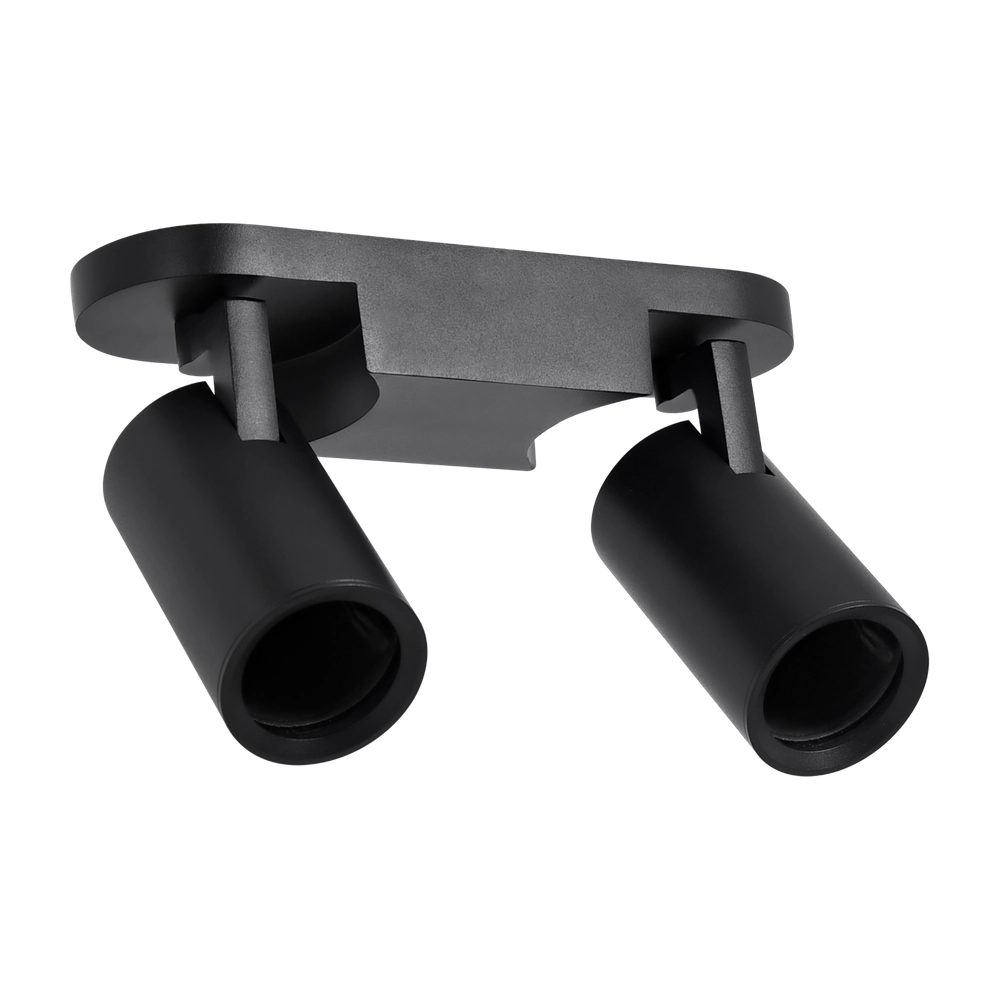

Black Finish
Single or Double Head Options
Single-head and double-head models are available for flexible accent lighting, general lighting and display lighting applications.

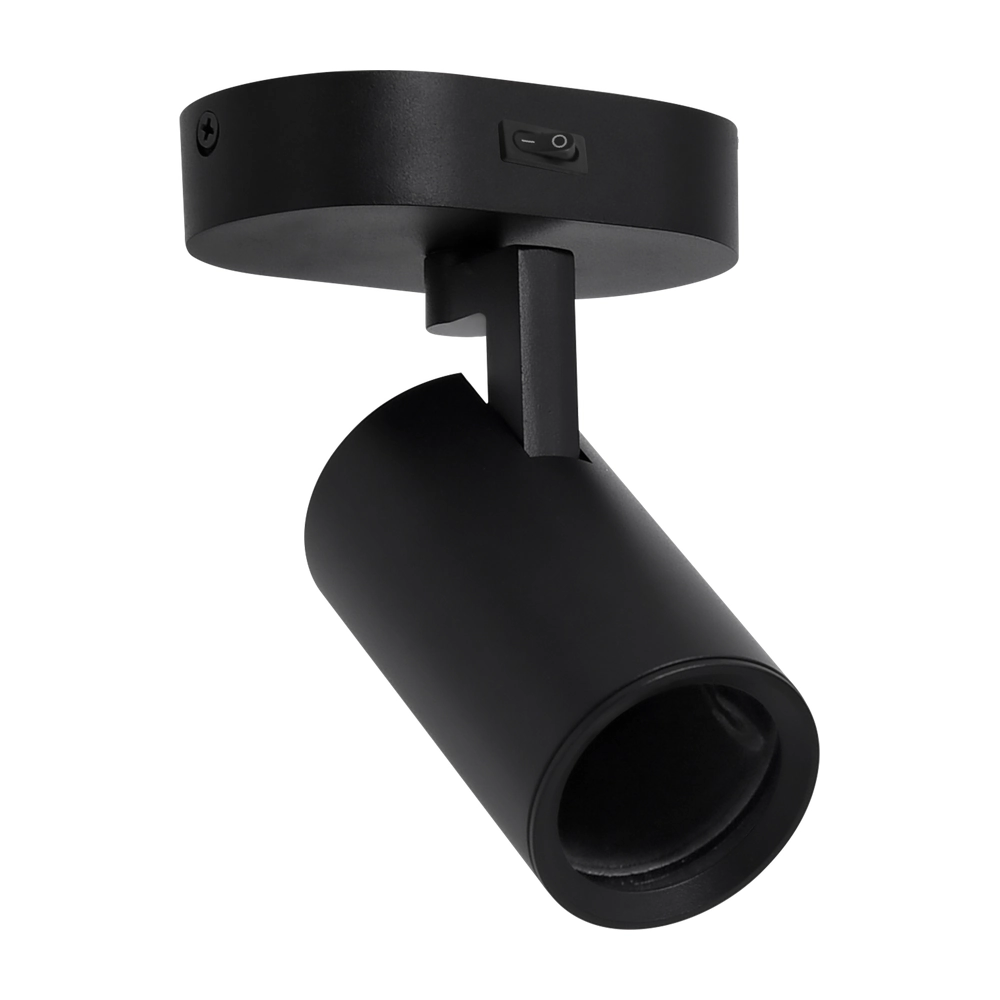

Single Head
Double Head
Optional On/Off Switch
Available with or without a built-in on/off switch for different project requirements.
With On/Off Switch
Without On/Off Switch

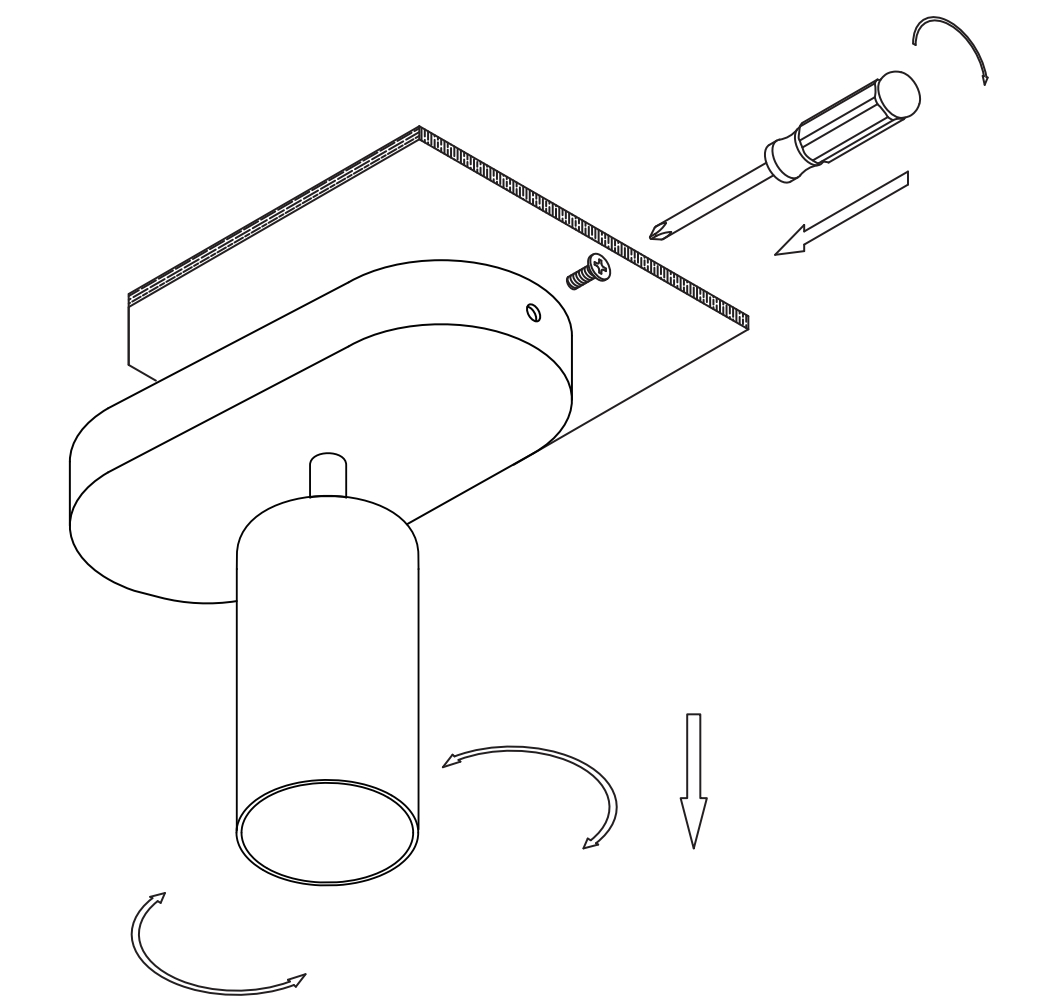

Quick and Easy Installation
The mounting bracket and quick terminal block simplify installation and reduce installation time.

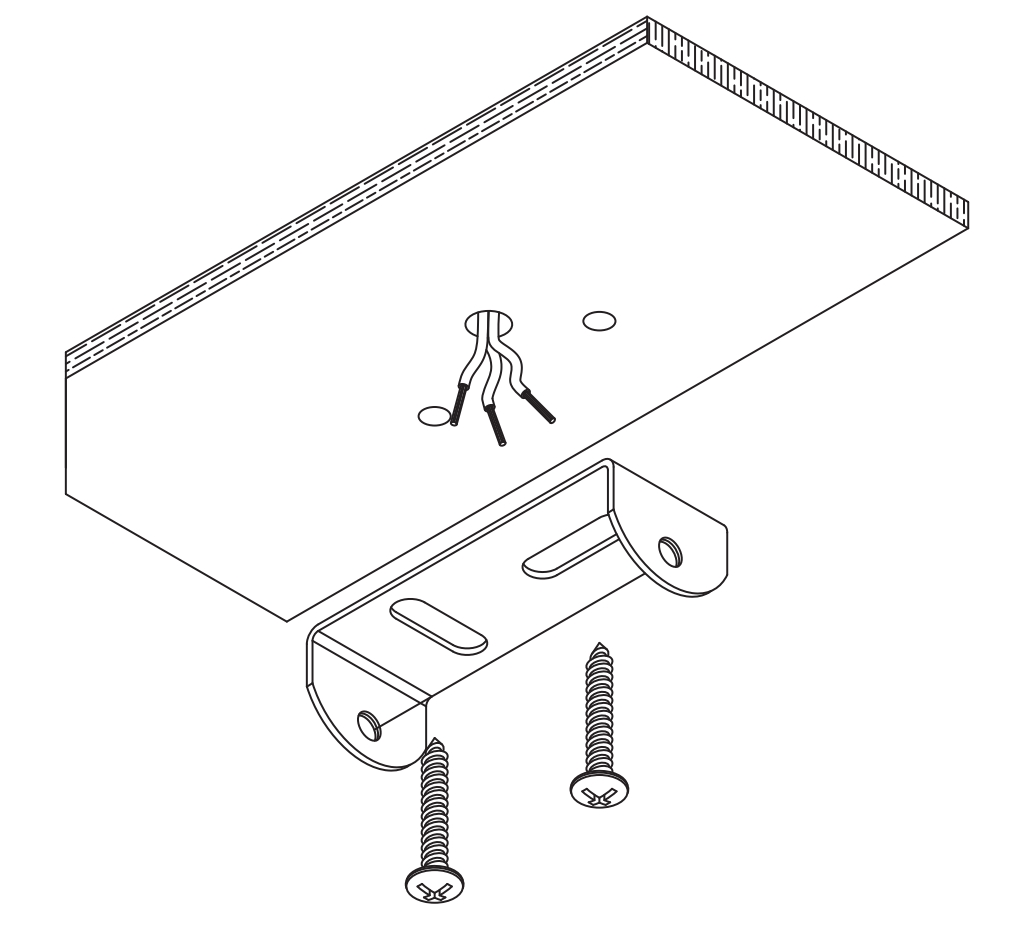

Step 1: Fix bracket

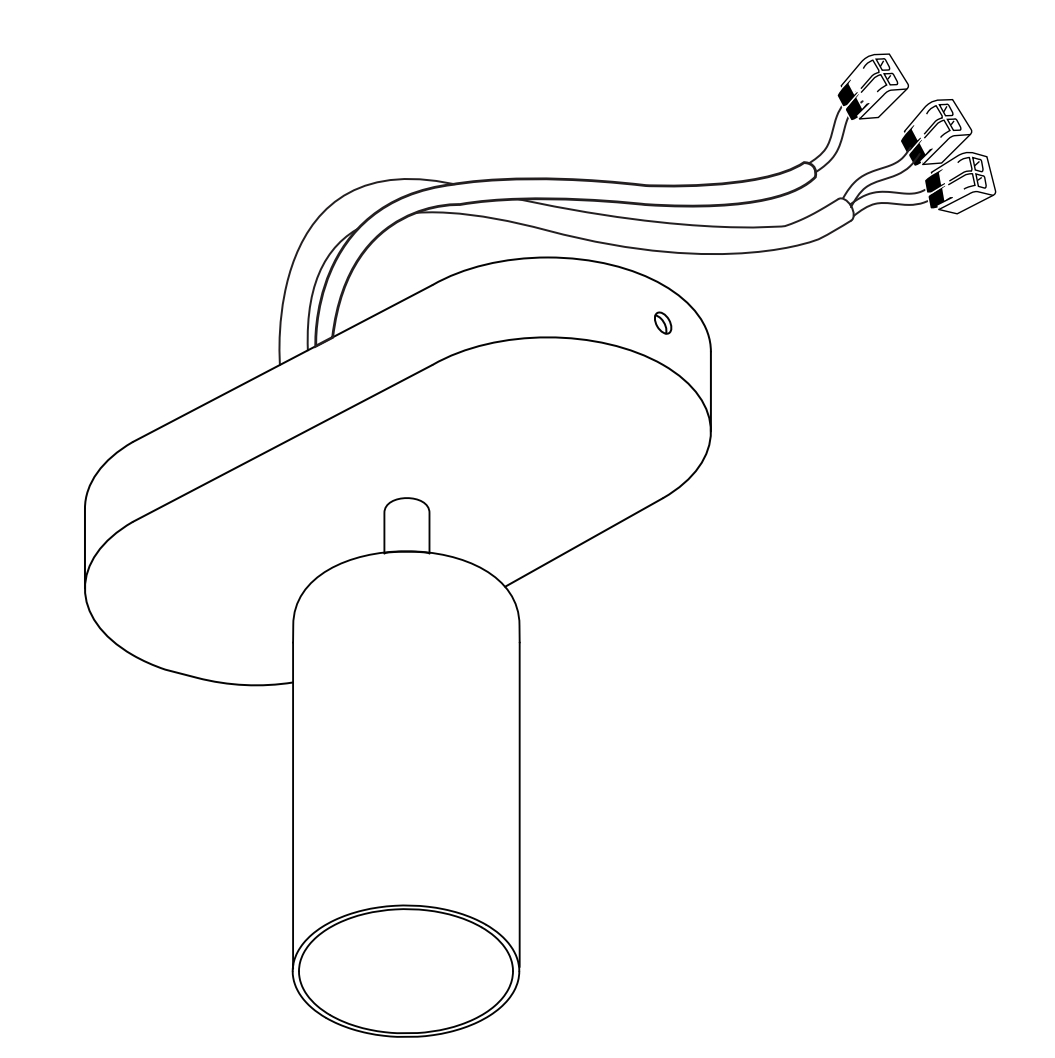

Step 2: Connect cable
Step 3: Lock lamp

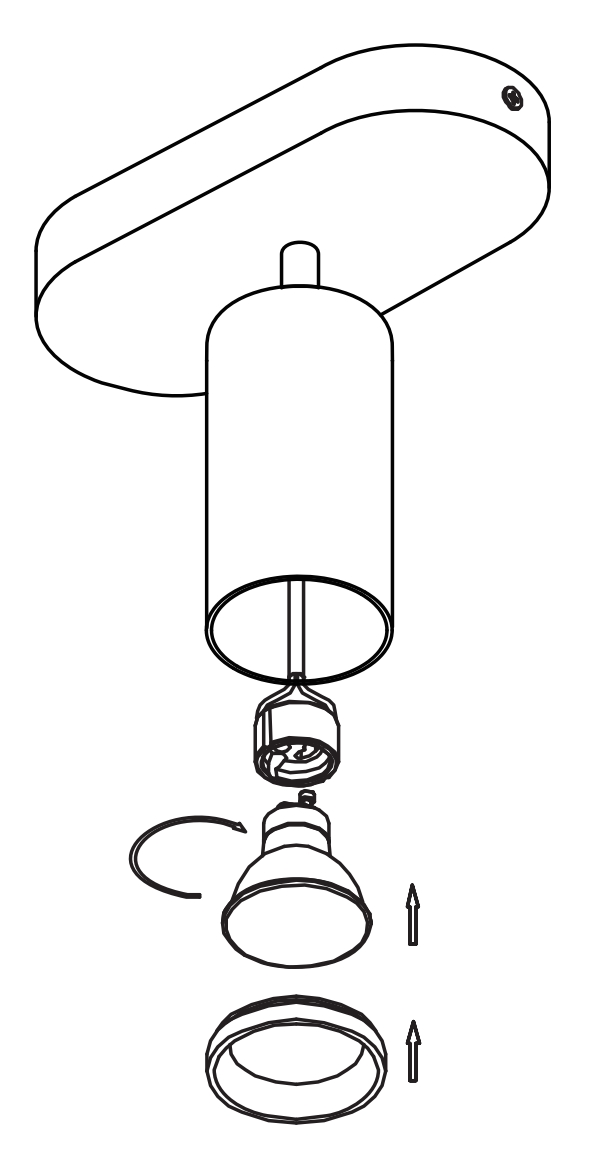

Step 4: Install GU10
Dimensions

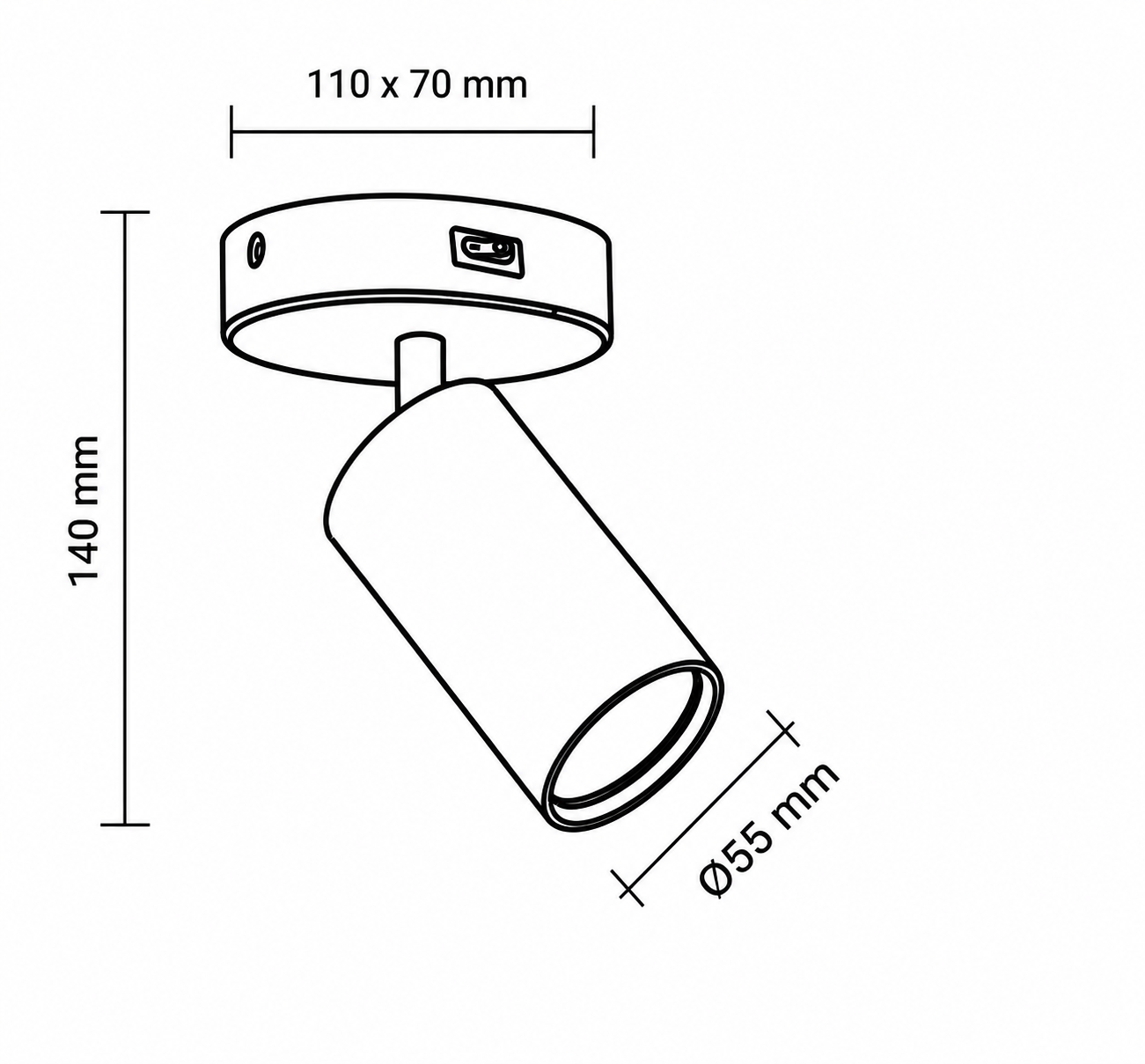

1 X GU10

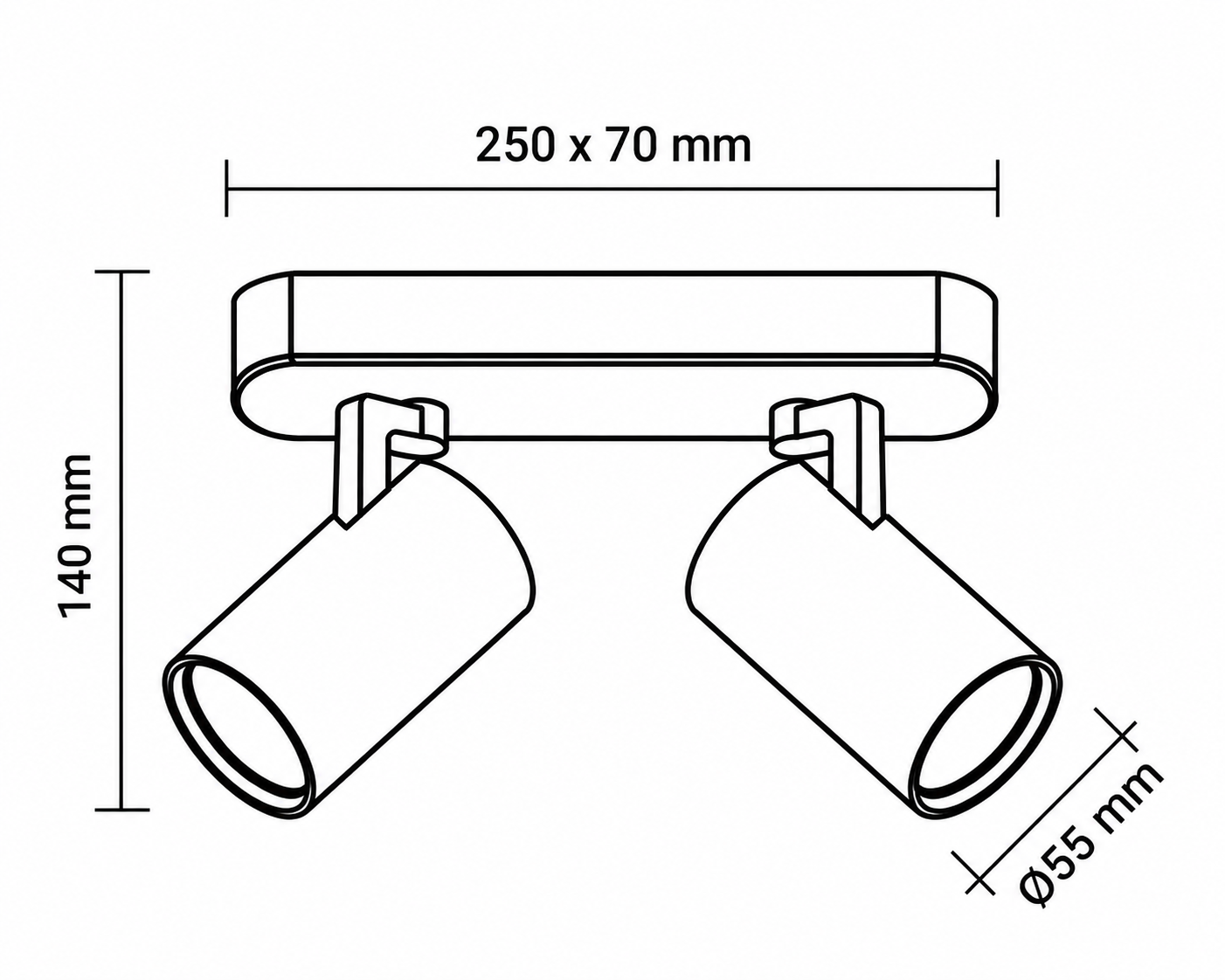

2 X GU10
Technical Specifications
Specification
Details
Product Type
Aluminum GU10 Spotlight
Item No
ML-GU10-501
Housing Material
Die-cast Aluminum
Input Voltage
AC 220-240V, 50/60Hz
Rated Power
Max 8W GU10 bulb for single head / Max 2 x 8W GU10 bulbs for double head, bulbs not included
Single-Head Dimensions
110*70*140mm
Double-Head Dimensions
250*70*140mm
Housing Color
White/Black
Switch
On/Off Switch Optional
Quick Terminal
Yes
IP Rating
IP20
Installation
Surface-mounted on wall or ceiling
Warranty
3 years
Certifications
CE, RoHS

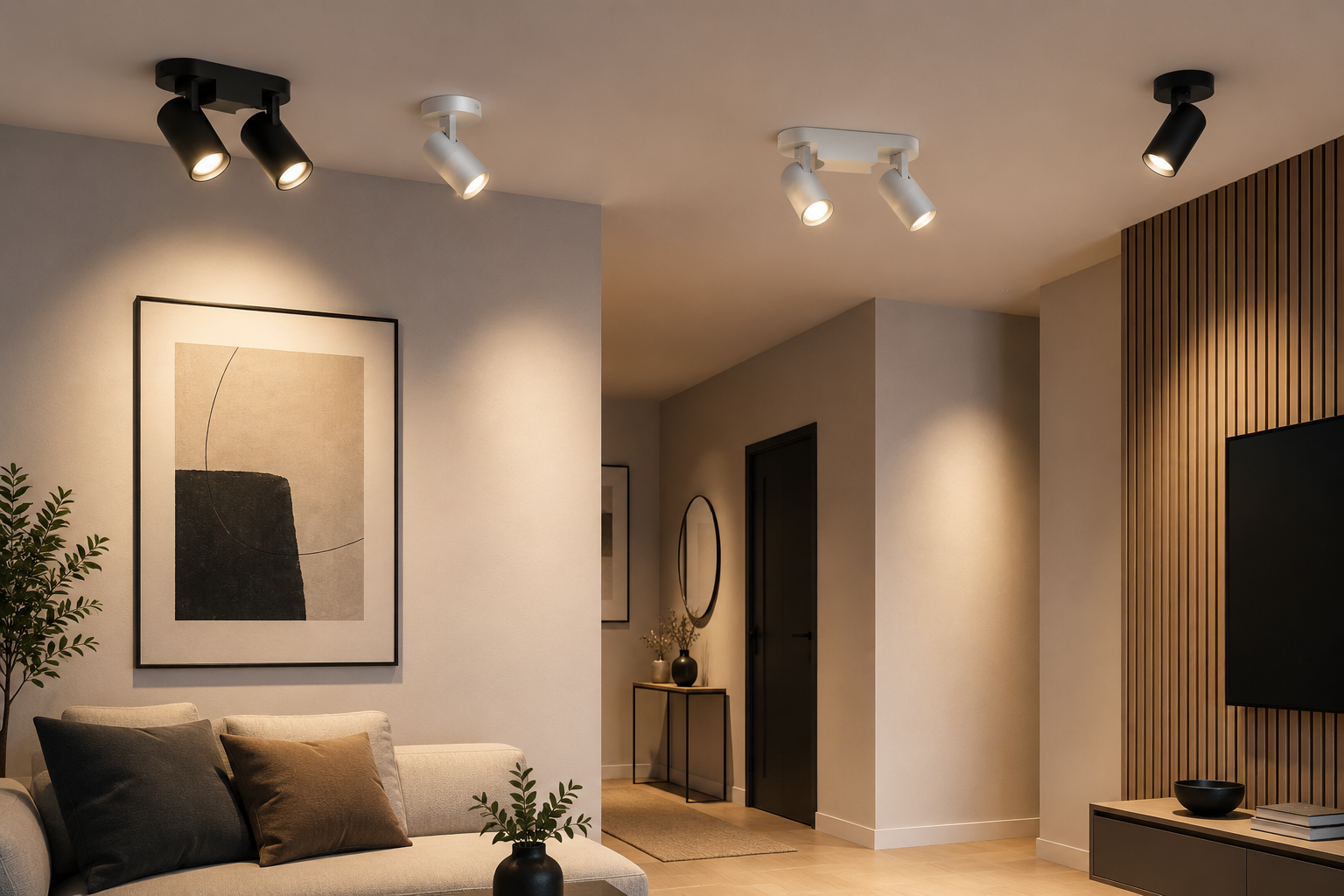

Applications & Installation
This GU10 surface mounted spotlight is suitable for distributors, wholesalers and project suppliers. The replaceable GU10 bulb design helps reduce maintenance cost. It also gives users more flexibility to choose different beam angles, wattages and color temperatures according to each project.
Suitable Applications
> Hotels and apartments
> Retail shops and showrooms
> Restaurants and cafes
> Corridors and entrance areas
> Offices and meeting rooms
> Galleries and display areas
> Residential lighting projects
Installation Options
The spotlight is designed for surface-mounted ceiling installation.
The adjustable lamp head allows the light direction to be changed easily.
It is suitable for general lighting, accent lighting and product display lighting.
The replaceable GU10 bulb design makes maintenance simple and flexible.
Frequently Asked Questions
Find answers to common questions about our GU10 surface-mounted spotlight.
1. Is the GU10 bulb included?
No. The GU10 bulb is not included as standard. Customers can select a suitable GU10 LED bulb according to their preferred wattage, color temperature and beam angle.
2. What type of GU10 bulb can be used?
The spotlight is compatible with standard GU10 LED bulbs with a maximum power of 8W per lamp head.
3. Is the spotlight available with one or two lamp heads?
Yes. Both single-head and double-head versions are available to meet different residential and commercial lighting requirements.
4. Can the direction of the light be adjusted?
Yes. The lamp heads are adjustable, allowing the light to be directed toward walls, displays, products or specific areas.
5. Can the spotlight be installed on both walls and ceilings?
Yes. It is designed for surface-mounted installation and can be installed on either a wall or ceiling.
6. Is an on/off switch available?
Yes. A built-in on/off switch is available as an optional configuration.
7. Do you support customized colors and packaging?
Yes. Minglite provides OEM and ODM support, including customized colors, branding, labels and packaging according to order requirements.
Looking for a Reliable Aluminum GU10 Spotlight Manufacturer?
Contact Minglite for wholesale prices, OEM/ODM options, custom packaging and sample support.
