ML-BH304 IP65 Round LED Bulkhead Light
The ML-BH304 is a compact IP65 round LED bulkhead light designed for distributors, wholesalers and project contractors. Available in 12W, 18W and 24W versions, it provides up to 2,400 lumens with a choice of black or white housing.
Optional 5.8GHz microwave sensing automatically controls the light according to movement, while the optional 3CCT function allows installers to select 3000K, 4000K or 6500K on site. The surface-mounted design is suitable for both wall and ceiling installation in corridors, staircases, entrances, utility rooms, garages and covered outdoor areas.
> IP65 Waterproof
> 12W / 18W / 24W
> High lumen efficiency up to 100lm/w
> Optional 5.8GHz Microwave Motion Sensor
> Optional 3CCT selectable: 3000K / 4000K / 6500K
> Round and Oval
Factory-Direct
CE & RoHS
2 Years
OEM/ODM
Round and Oval Shape Options
Available in both round and oval housings to suit different installation spaces and architectural styles. Both versions feature a compact surface-mounted design for corridors, staircases, warehouses, utility rooms and covered outdoor areas.
Round
Oval

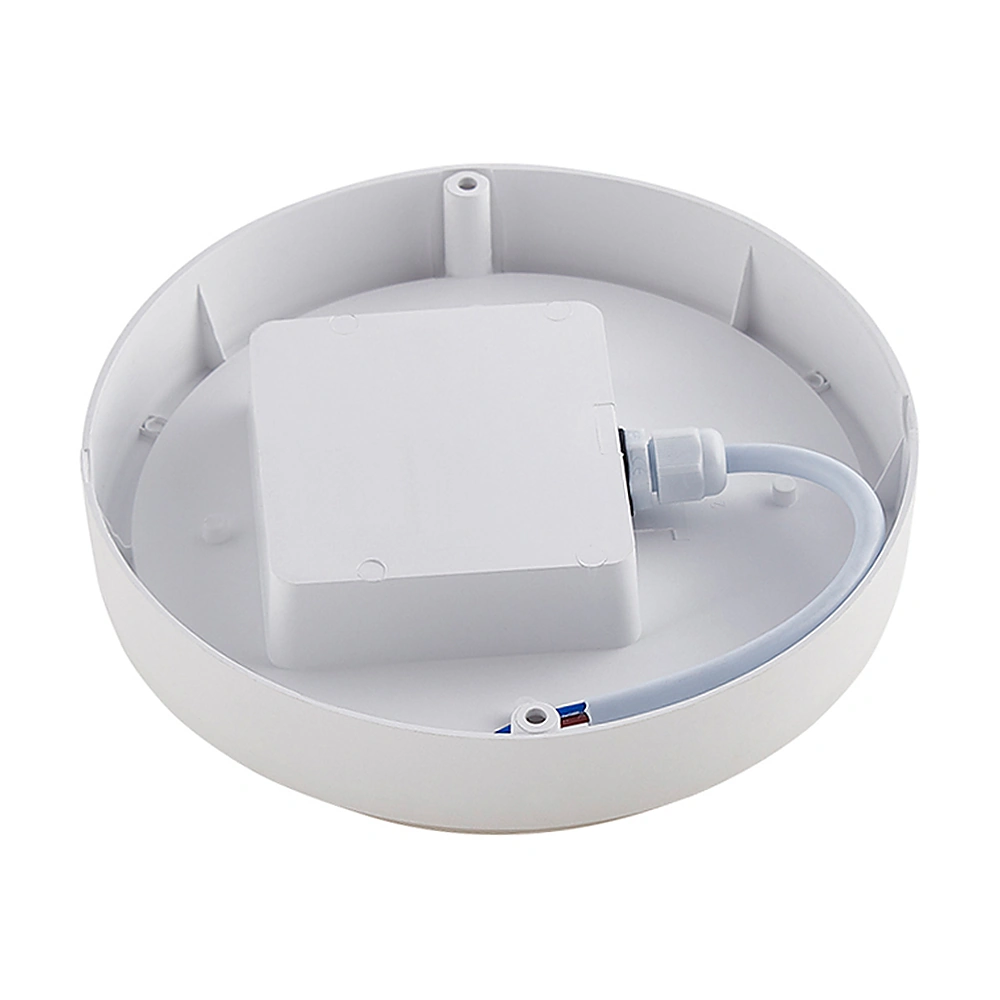

Round Back View

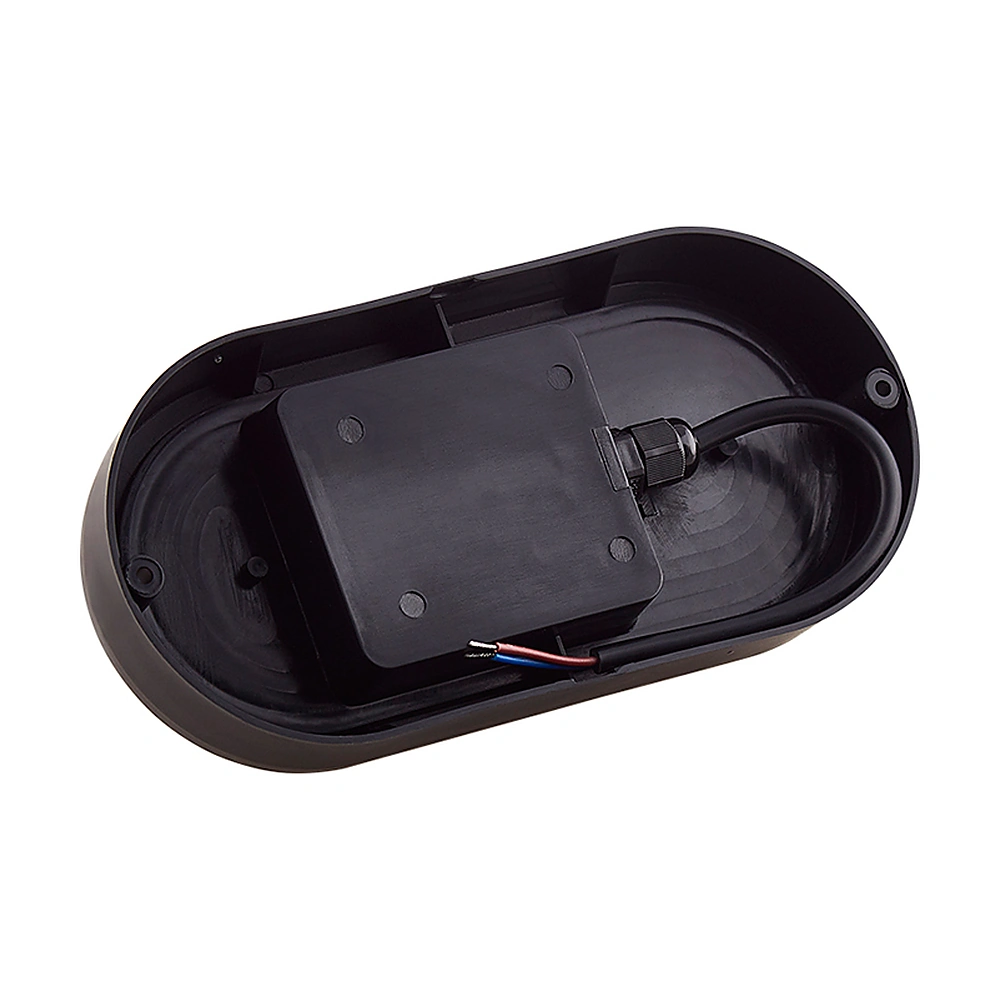

Oval Back View
Key Features of the IP65 Round LED Bulkhead Light
Designed for reliable general lighting in humid, dusty and covered outdoor areas, the ML-BH304 combines IP65 protection, flexible surface mounting, optional 3CCT selection and optional microwave sensing in one compact product series.
IP65 Protection
The enclosed housing construction helps protect the internal components against dust and water ingress, making the luminaire suitable for humid, dusty and semi-outdoor environments.
Durable PP Housing
The housing is manufactured from durable PP material, providing a lightweight, corrosion-resistant and practical solution for residential, commercial and utility lighting projects.
Microwave Sensor
Optional 5.8GHz microwave sensor automatically activates the light when movement is detected and switches it off after the preset hold time, reducing unnecessary energy consumption in corridors, staircases and utility areas.
3CCT Selectable
One luminaire can therefore provide warm white, neutral white or cool white illumination, reducing the need to stock separate products for different color temperatures.
Flexible Wall or Ceiling Installation
The compact surface-mounted design can be installed horizontally or vertically on walls and can also be used for ceiling mounting according to project requirements.
Easy Wiring and Maintenance
The rear-mounted wiring compartment and cable entry design provide convenient access during installation and help keep the electrical connection protected inside the housing.
Technical Specifications
Specification
Details
Product Type
IP65 Round LED Bulkhead Light
Item No
ML-BH304
Power
12W, 18W, 24W
Lumen
1200lm, 1800lm, 2400lm
Product Size
D155 x 52mm, D175 x 52mm, D220 x 52mm
LED type
2835SMD
Color Temperature
Optional 3CCT Selectable
Voltage
AC200-240V
Power Factor
>0.5
CRI
Ra80
IP Rating
IP65
Electrical Protection Class
Class II
Mounting Type
Surface Mounted
Housing Color
White / Black
Shape Options
Round / Oval
Lifetime
30000H
Warranty
2 years
Certifications
CE, RoHS

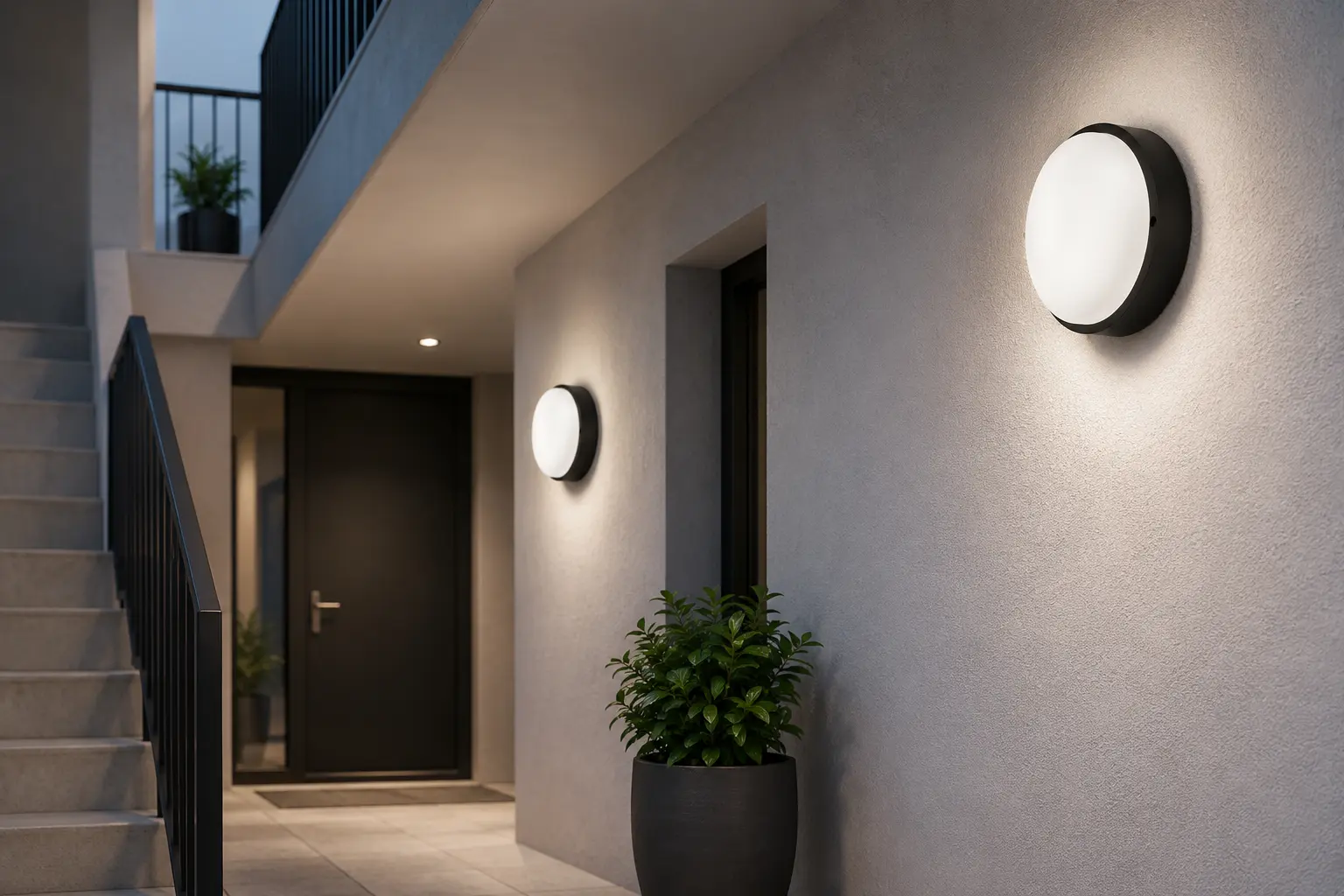

Indoor and Covered Outdoor Applications
Designed for both wall and ceiling installation, the ML-BH304 provides practical illumination for residential buildings, commercial properties and utility areas where moisture resistance and easy maintenance are required.
> Apartment corridors
> Staircases and stairwells
> Balconies and terraces
> Building entrances
> Utility rooms
> Storage rooms
> Garages and Warehouses
> Covered walkways
> Basement areas
> Residential wall and ceiling lighting
Frequently Asked Questions
Find answers to common questions about our IP65 Round LED Bulkhead Light
1. Is the ML-BH304 suitable for outdoor installation?
The product has an IP65 protection rating and can be used in humid, dusty and sheltered outdoor environments. The installation surface and cable entry should be properly sealed during installation.
2. Can this bulkhead light be mounted on both walls and ceilings?
Yes. The surface-mounted structure is suitable for wall or ceiling installation. It can also be installed horizontally or vertically according to the application.
3. Is a motion sensor version available?
Yes. The ML-BH304 can be supplied with an optional built-in 5.8GHz microwave motion sensor.
4. Is a 3CCT version available?
Yes. The ML-BH304 can be supplied with an optional 3CCT selectable function.
5. What colors are available?
Standard colours are white and black.
6. Can you provide customized packaging?
Yes. Color boxes, brown boxes, labels, manuals and carton markings can be customized.
7. What is the warranty period?
The standard warranty is two years under normal installation and operating conditions.
Looking for a Reliable IP65 Round LED Bulkhead Light Manufacturer?
Contact Minglite for wholesale pricing, sample evaluation, OEM branding, custom packaging and technical documentation.
