IP65 LED Emergency Light with Interchangeable Open-Area and Corridor Lenses
A compact IP65 non-maintained emergency light with interchangeable open-area and corridor lenses. It delivers up to 280 lm emergency output, 3-hour backup and switchable self-test or manual-test operation.
280 lm open-area or 230 lm corridor emergency output with interchangeable optics.
IP65 housing, 3-hour backup and self-test/manual test switchable design.
> Interchangeable Open-Area & Corridor Lenses
> 280 lm / 230 lm Emergency Output
> IP65-Rated Housing
> 3-Hour Emergency Backup
> Switchable Self-Test / Manual Test
> LiFePO4 3.2V 3.3Ah
Factory-Direct
CE & RoHS
5 Years
OEM/ODM

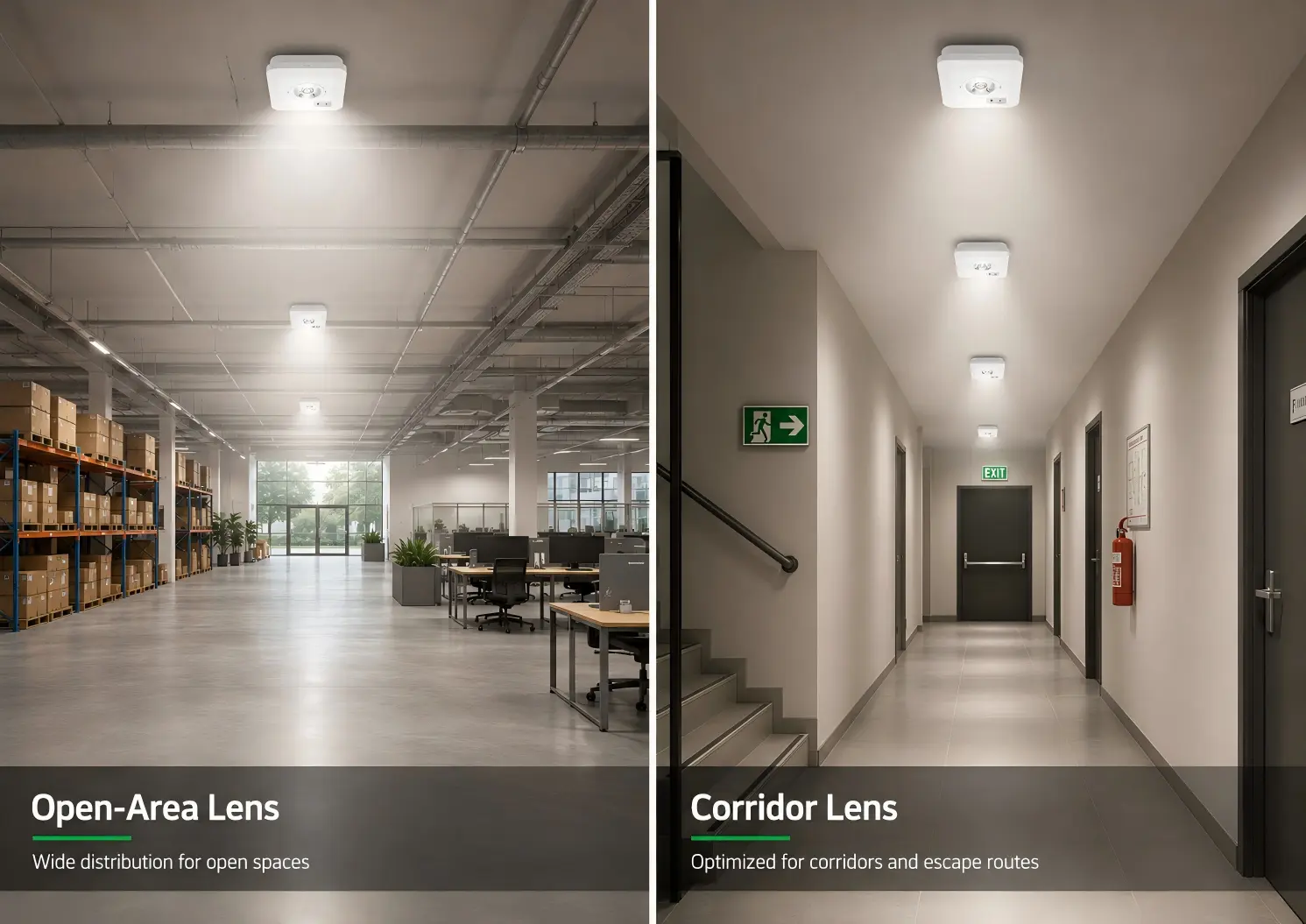

One Fixture, Two Lighting Distributions
By replacing the optical lens, the same emergency light can be used for either open-area lighting or corridor lighting. This reduces the number of models distributors need to keep in stock and simplifies project selection.

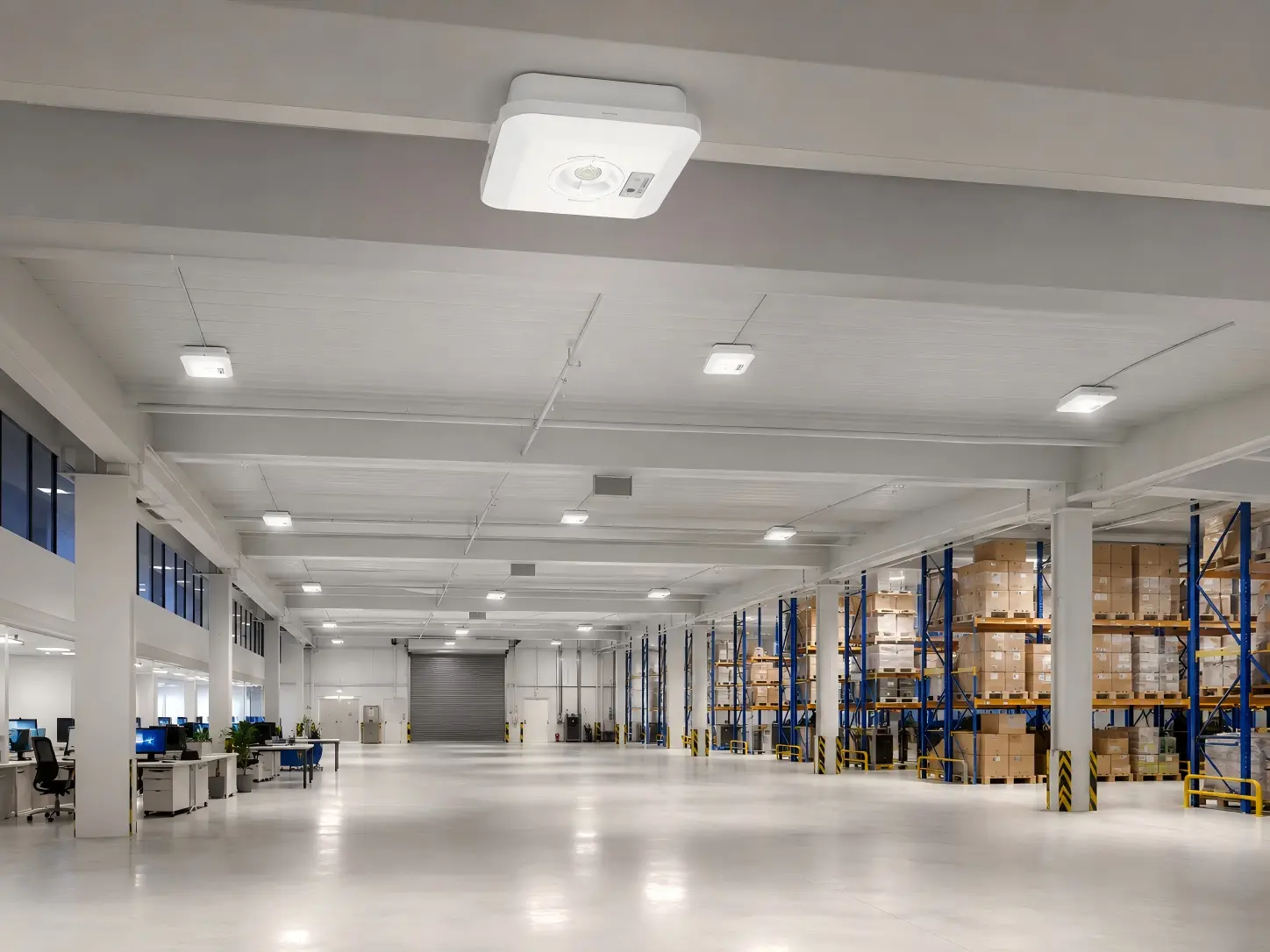

Open-Area Lens
The 150degree open-area lens provides wide and uniform emergency illumination for halls, offices, entrance areas, stairway landings and other open spaces.
> Beam angle: 150degree
>Emergency output: 280 lm
>Application: Open areas and general escape-route spaces

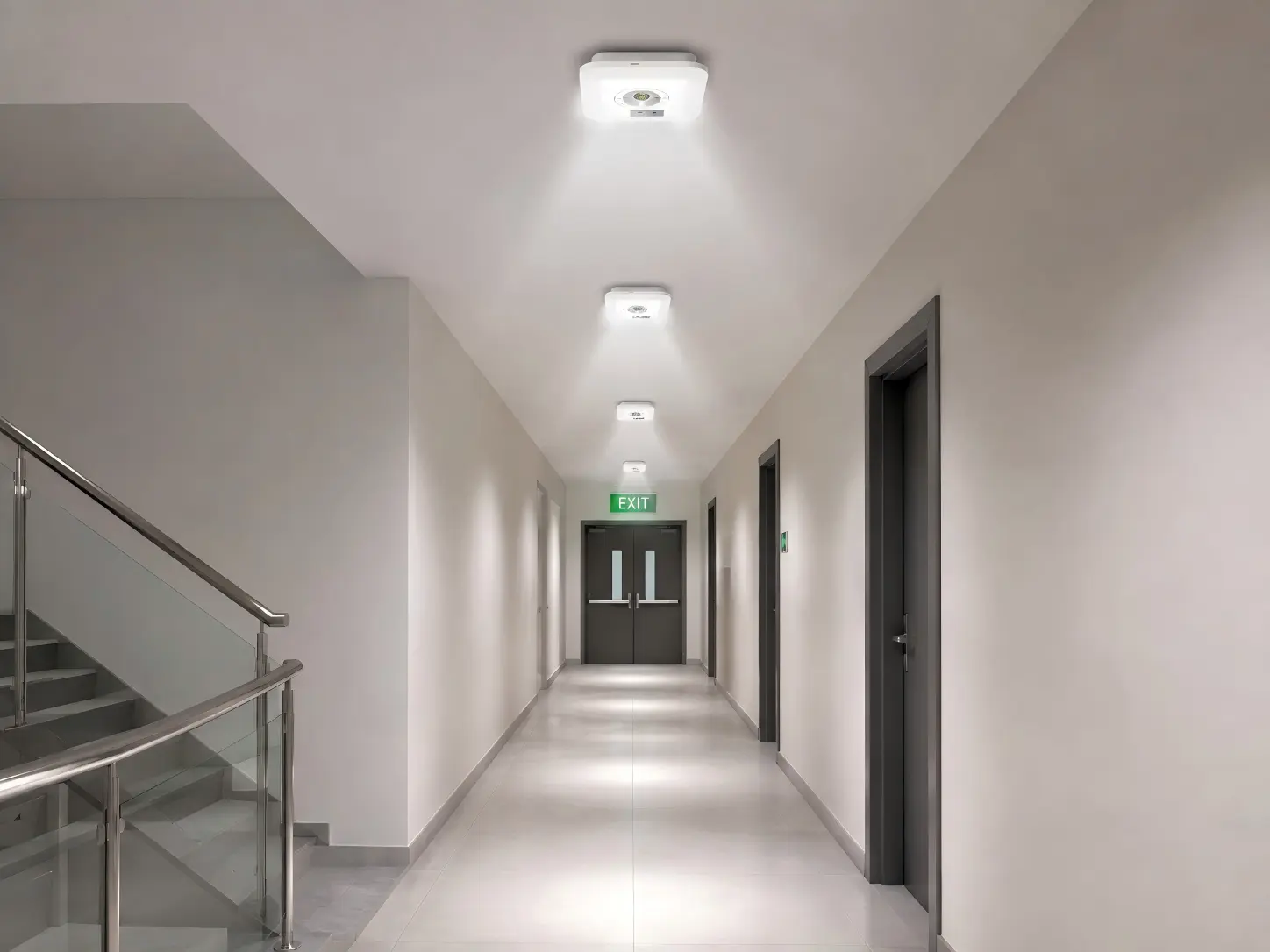

Corridor Lens
The 150degree x 80degree corridor lens directs the emergency light along narrow passageways, helping improve lighting coverage in corridors and escape routes.
> Beam angle: 150degree x 80degree
> Emergency output: 230lm
>Application: Corridors, passageways and escape routes
White and Black Housing Options
Available in both white and black housings to match different ceiling styles and commercial interiors. The low-profile round design provides a clean and unobtrusive appearance for corridors, offices, hotels and public buildings.
White Housing
Black Housing
Round and Square Shape Options
Available in both round and square housings to suit different ceiling layouts and architectural styles. Both versions feature a compact, low-profile design for discreet installation in corridors, offices, hotels and public buildings.
Round Housing
Square Housing
Key Features of the IP65 Interchangeable Lens Emergency Light
Flexible emergency lighting with interchangeable lenses, selectable test functions and reliable 3-hour backup operation.
Interchangeable Lenses
Open-area and corridor lenses can be changed according to different lighting applications.
Up to 280 lm Output
Provides 280 lm for open areas and 230 lm for corridor applications.
IP65 Protection
Dust-resistant and water-resistant construction for indoor and semi-outdoor installations.
3-Hour Emergency Duration
Provides reliable emergency illumination for up to three hours after a power failure.
Self-Test / Manual Test
Selectable self-test and manual-test operation for different project requirements.
Black and White Options
Available in both white and black finishes to match different ceiling styles and interior designs.
Technical Specifications
Specification
Details
Product Type
IP65 Interchangeable Lens Emergency Light
Item No
ML-EM108
Housing Material
PC
Input Power
Max. 1.6W
Emergency Power
2W
Emergency Output
Open area: 280 lm / Corridor: 230 lm
Lens Options
150degree Open-Area Lens / 150 x 80degree Corridor Lens
Input Voltage
AC 220-240V, 50/60Hz
LED type
2835SMD
Color temperature
6500K
Emergency Duration
3 Hours
Operating Mode
Non-Maintained
Test Function
Self-Test / Manual Test Switchable
Battery
LiFePO4 3.2V 3.3Ah
IP Rating
IP65
Housing Color
White / Black
Mounting Type
Surface Mounted
Shape Options
Round / Square
Product Size
155 x 155 x 46 mm
Warranty
5 years
Certifications
CB, CE, UKCA, RoHS, REACH
Product Applications
Suitable for corridors, escape routes, staircases and open areas in commercial, residential and public buildings.
Suitable Applications
> Corridors and escape routes
> Offices and commercial buildings
> Hotels and apartment buildings
> Hospitals and educational facilities
> Warehouses and industrial buildings
> Car parks and covered outdoor areas
Frequently Asked Questions
Find answers to common questions about our IP65 Interchangeable Lens Emergency Light
1. What is the difference between the two lenses?
The open-area lens provides a wide 150degree light distribution for general open spaces, while the corridor lens provides a 150 x 80degree distribution designed to direct light along corridors and passageways.
2. Can the lenses be replaced after installation?
Yes. The optical lenses are interchangeable and can be changed according to the lighting-distribution requirements of the project.
3. What is the emergency lumen output?
The emergency output is approximately 280 lm with the open-area lens and 230 lm with the corridor lens.
4. How long does the emergency light operate during a power failure?
The built-in LiFePO4 battery provides up to three hours of emergency operation.
5. Does the product support self-test operation?
Yes. The same fixture allows the test mode to be selected according to project requirements.
6. Is it suitable for damp or dusty locations?
The fixture has an IP65-rated housing, making it suitable for locations where protection against dust and water is required.
7. Are different colours and shapes available?
Yes. Round and square versions are available, with white and black housing options.
