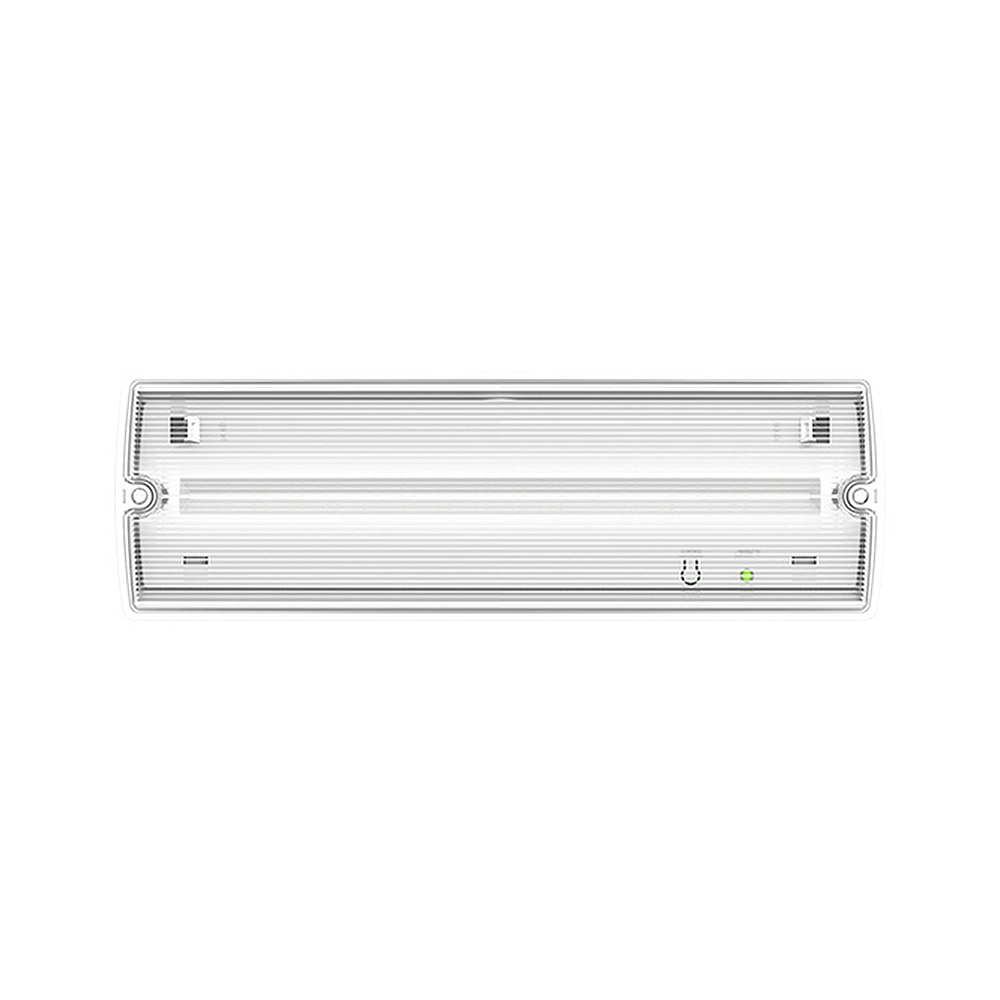

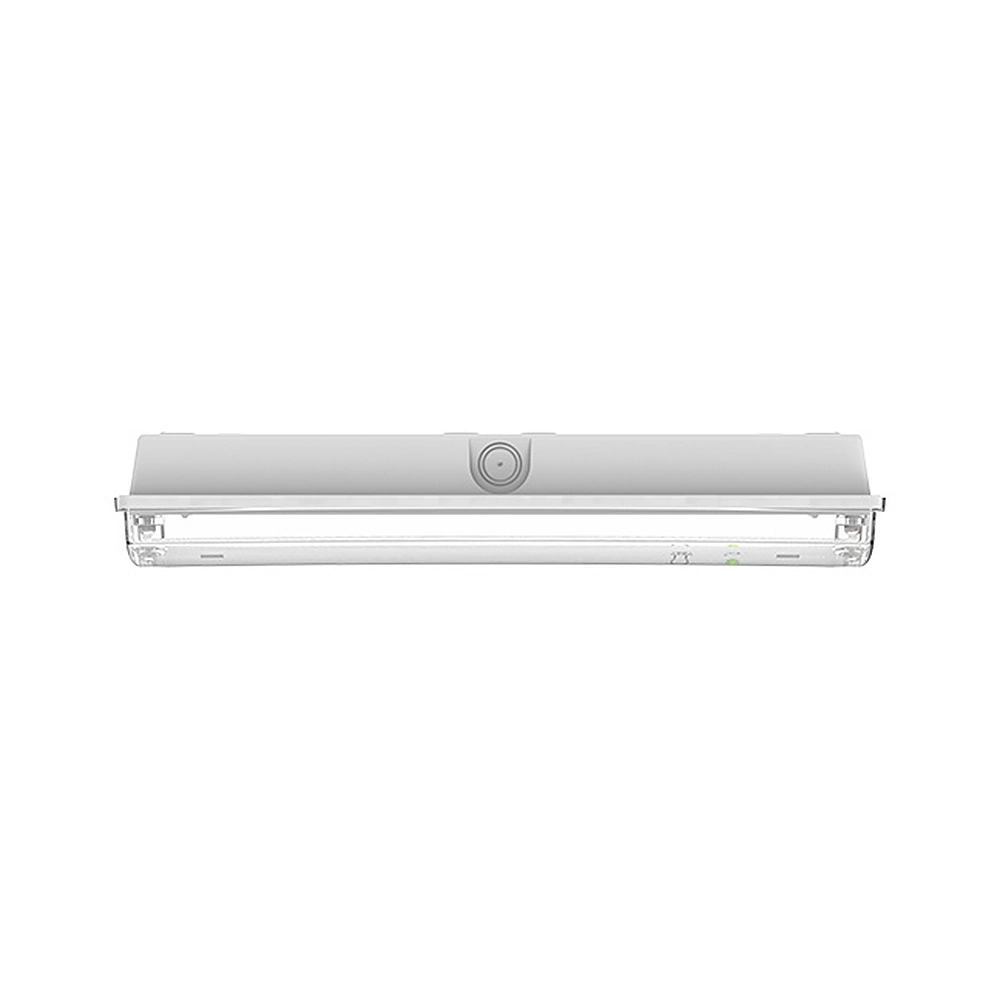

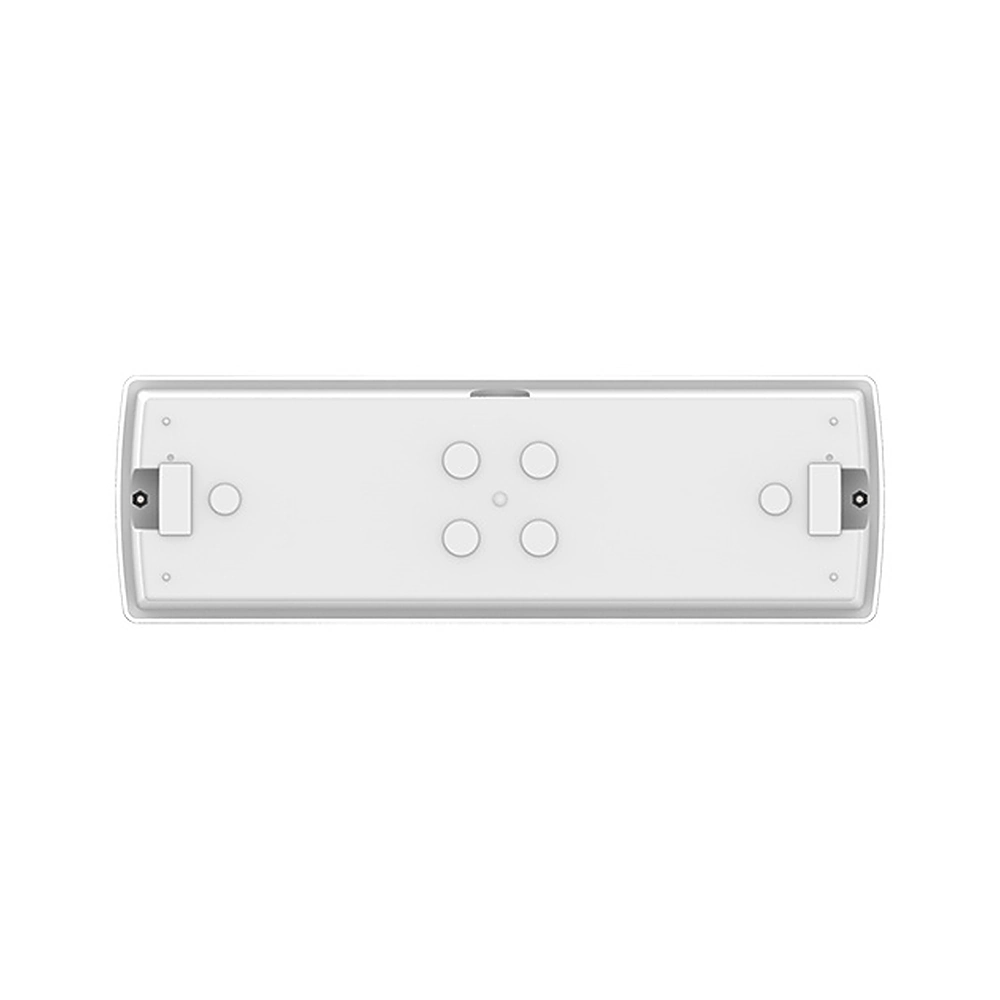

IP66 LED Emergency Bulkhead Light
A versatile IP66 LED emergency bulkhead light for indoor and outdoor escape-route illumination. Available in 150 lm, 200 lm and 300 lm versions with 3-hour LiFePO4 backup, manual or self-test operation and multiple mounting accessories.
> IP66 waterproof protection and IK07 impact resistance
> 150 lm, 200 lm and 300 lm emergency output options
> 3-hour LiFePO4 emergency backup
> Maintained or non-maintained, with manual test or self-test options
> One standard body for surface, recessed and exit sign installations
> Removable gear tray for faster wiring, maintenance and battery replacement
Factory-Direct
CE & RoHS
5 Years
OEM/ODM
Available Housing Colors
Available in white, black and yellow housing finishes to meet different project and market requirements.
White Housing
Black Housing
Yellow Housing
Optional Mounting Accessories
The emergency light and mounting accessories can be ordered separately according to project requirements, helping distributors reduce inventory pressure and simplify stock management.
Wall-Mounted Exit Sign Kit
Ceiling-Mounted Exit Diffuser Kit
Recessed Mounting Kit
Technical Specifications
Specification
Details
Product Type
LED emergency bulkhead
Item No
ML-EM103
Input Voltage
AC220-240V / AC110V
Maximum Input Power
Max. 3.5W / 4.5W / 4.8W
Emergency Power
1W / 1.3W / 1.6W
Emergency Lumen
150lm / 200lm / 300lm
Battery
LiFePO4 3.2V 1.5Ah / 1.8Ah / 3.0Ah
Emergency Duration
3 Hours
Color Temperature
6500 K
Operating Mode
Maintained / Non-Maintained
Test Function
Self-Test / Manual Test
Housing Material
PC Diffuser + ABS Base
IP Rating
IP66
Impact Rating
IK07
Dimensions
355 x 115 x 63 mm
Recessed Cut-out
360 x 126 mm
Mounting Options
Surface Mounted / Wall Mounted / Recessed
Warranty
5 years
Housing Color
White / Black / Yellow
Certifications
CB, CE, UKCA, RoHS, REACH
Applications & Installation Flexibility
Designed to provide reliable emergency illumination in commercial, industrial and public buildings. When fitted with the optional exit diffuser kit, the same luminaire can also provide clear escape-route indication.
Suitable Applications
> Corridors and stairways
> Emergency exits and escape routes
> Industrial facilities and commercial buildings
> Hotels and shopping centers
> Hospitals and schools
> Warehouses and Factories
Simplified Inventory Management
The standard emergency light body can be combined with different mounting accessories. Accessories can be ordered separately, helping distributors reduce complete-model inventory while meeting different project requirements.
Frequently Asked Questions
Find answers to common questions about our IP65 Round LED Emergency Light
1. Is this emergency bulkhead available in maintained and non-maintained versions?
Yes. Maintained and non-maintained versions are available. In maintained mode, the light operates during normal mains supply and remains illuminated during a power failure. In non-maintained mode, the emergency LEDs operate only when the mains power fails.
2. What is the emergency operating duration?
The standard emergency duration is 3 hours after a full charge, making the luminaire suitable for escape routes, corridors, stairways, warehouses and other commercial or public buildings.
3. Is a self-test version available?
Yes. Both manual-test and self-test versions are available. The self-test version automatically checks the battery, emergency light source and charging circuit at scheduled intervals, helping reduce manual inspection and maintenance work.
4. Can the mounting accessories be ordered separately?
Yes. The recessed mounting kit, wall-mounted exit sign kit and ceiling-mounted exit diffuser kit can be ordered separately. This allows distributors and project customers to use one standard emergency light body for different installation requirements.
5. Can the light be used as an emergency exit sign?
Yes. The standard emergency bulkhead can be combined with an optional wall-mounted or ceiling-mounted exit sign diffuser kit. Different exit legends and arrow directions can be supplied according to project and market requirements.
6. What installation methods are supported?
The emergency light can be surface-mounted on a wall or ceiling. Recessed installation is also available with the optional recessed mounting kit. Exit sign configurations are available with optional wall-mounted or ceiling-mounted diffuser accessories.
7. Can you provide customized packaging and private labels?
Yes. OEM and ODM services are available, including customized product labels, model numbers, color boxes, instruction manuals, exit legends and outer-carton markings. Customized housing colors may also be evaluated for volume orders.
