IP65 Round LED Emergency Light
330 lm / 400 lm | Interchangeable Open-Area & Corridor Lenses | Selectable Self-Test or Manual Test | 3-Hour Emergency Duration
> 330 lm and 400 lm emergency output options
> Interchangeable open-area and corridor lenses
> Selectable self-test or manual-test operation
> 3-hour emergency duration
> Durable IP65 polycarbonate housing
> White and black housing options
Factory-Direct
CE & RoHS
5 Years
OEM/ODM
Open-Area and Corridor Lens Options
Two interchangeable lenses allow one emergency light to provide different light distributions for open spaces and escape routes.

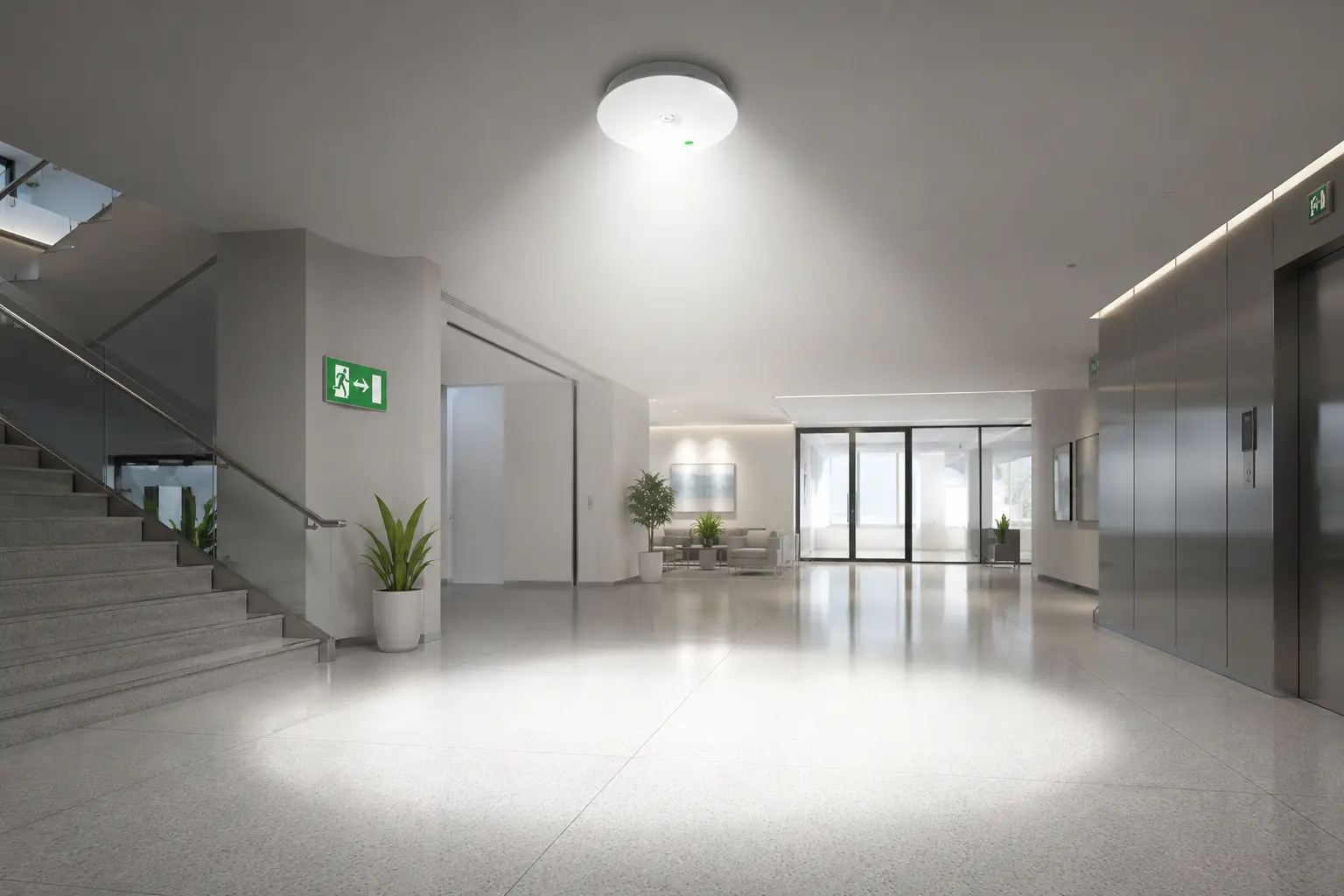

Open-Area Lens
Provides wide and even light distribution for open spaces, stair landings, reception areas and service zones.

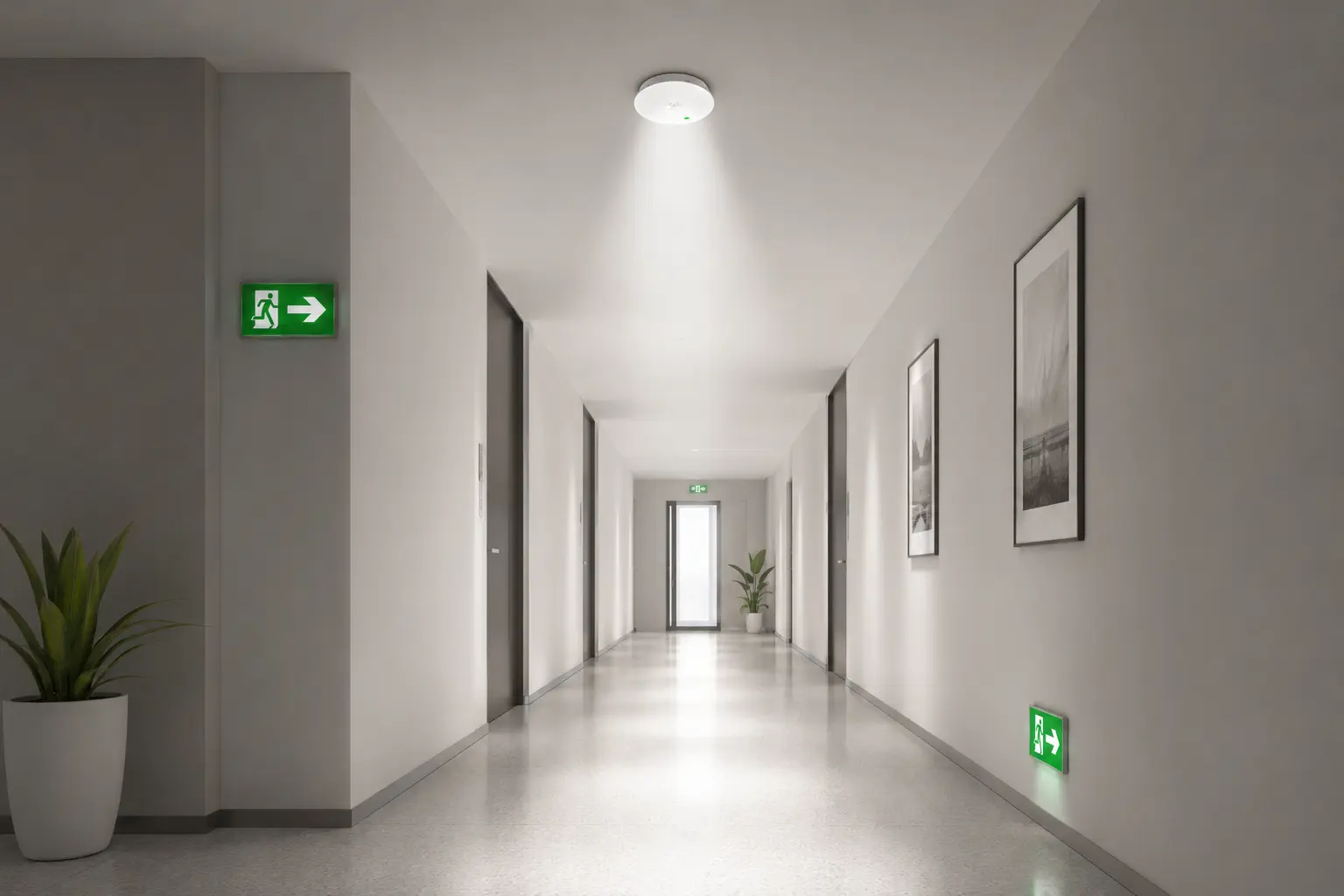

Corridor Lens
Creates an elongated beam pattern along corridors, escape routes and narrow passageways.
White and Black Housing Options
Available in both white and black housings to match different ceiling styles and commercial interiors. The low-profile round design provides a clean and unobtrusive appearance for corridors, offices, hotels and public buildings.
White Housing

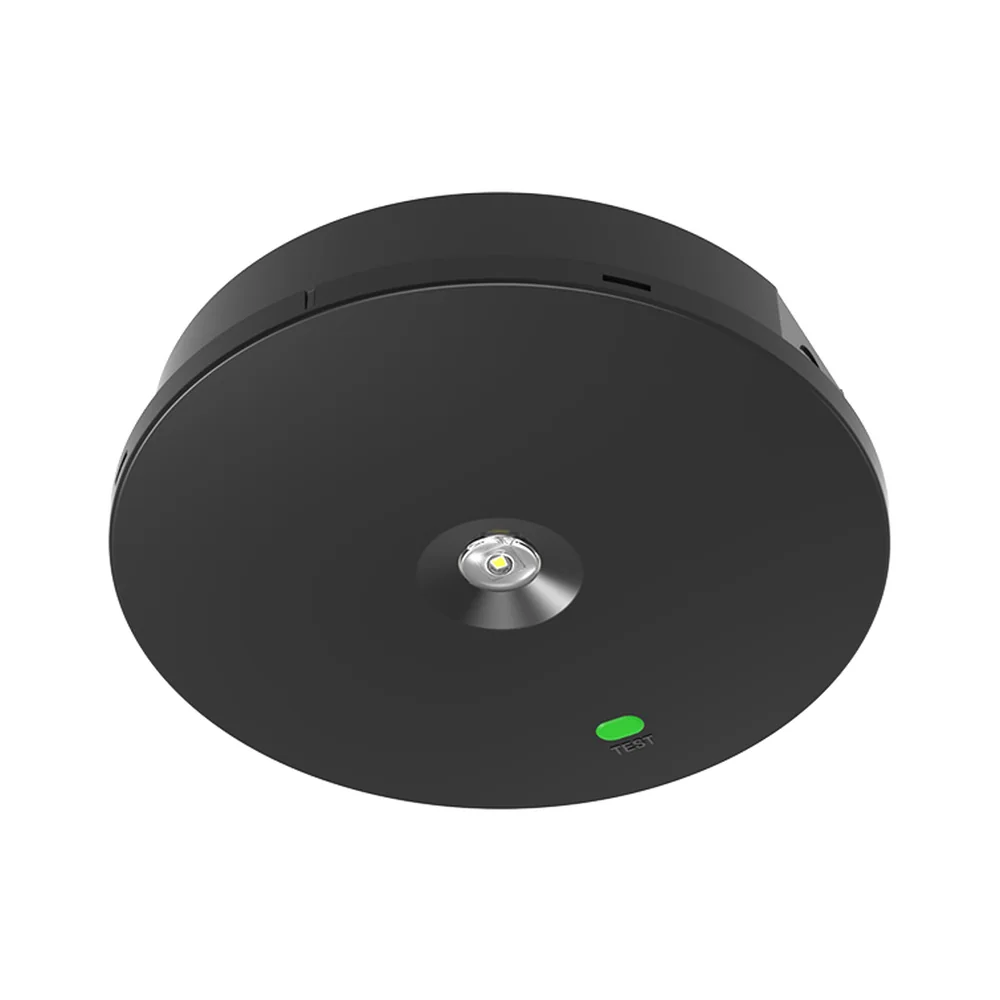

Black Housing
Key Features of the IP65 Round LED Emergency Light
Flexible emergency lighting with interchangeable lenses, selectable test functions and reliable 3-hour backup operation.
330lm or 400lm Output Options
Two emergency lumen outputs are available to meet different installation heights and project requirements.
Interchangeable Emergency Lenses
Compatible with open-area and corridor lenses, allowing one fixture to provide different emergency light distributions.
IP65 Protection
The sealed PC housing provides protection against dust and water, making the fixture suitable for indoor commercial areas and demanding installation environments.
3-Hour Emergency Duration
The integrated LiFePO4 battery provides up to 3 hours of emergency lighting after mains power failure.
Manual or Self-Test Options
Switch easily between manual-test and self-test operation according to project and maintenance requirements.
Black and White Options
Available in both white and black finishes to match different ceiling styles and interior designs.
One Fixture for Different Emergency Lighting Applications
With interchangeable open-area and corridor lenses, as well as switchable self-test and manual-test functions, distributors can cover different project requirements with fewer product models.
This helps distributors and project suppliers to:
1) Reduce SKU quantity and simplify inventory management
2) Improve flexibility for different emergency lighting projects
3) Reduce the risk of ordering the wrong lens or test version
Technical Specifications
Specification
Details
Product Type
IP65 Round LED Emergency Light
Item No
ML-EM106
Housing Material
PC
Input Power
Max. 1.8W / 2.2W
Emergency Power
2.2W / 2.9W
Emergency Output
330lm / 400lm
Input Voltage
AC 220-240V, 50/60Hz
LED type
2835SMD
Color temperature
6500K
Emergency Duration
3 Hours
Operating Mode
Non-Maintained
Test Function
Self-Test / Manual Test Switchable
Battery
LiFePO4 3.2V 3.3Ah / 3.2V 4.5Ah
Lens Options
Open-Area Lens / Corridor Lens
IP Rating
IP65
Housing Color
White / Black
Mounting Type
Surface Mounted
Product Size
D200 x 44.5mm
Warranty
5 years
Certifications
CB, CE, UKCA, RoHS, REACH

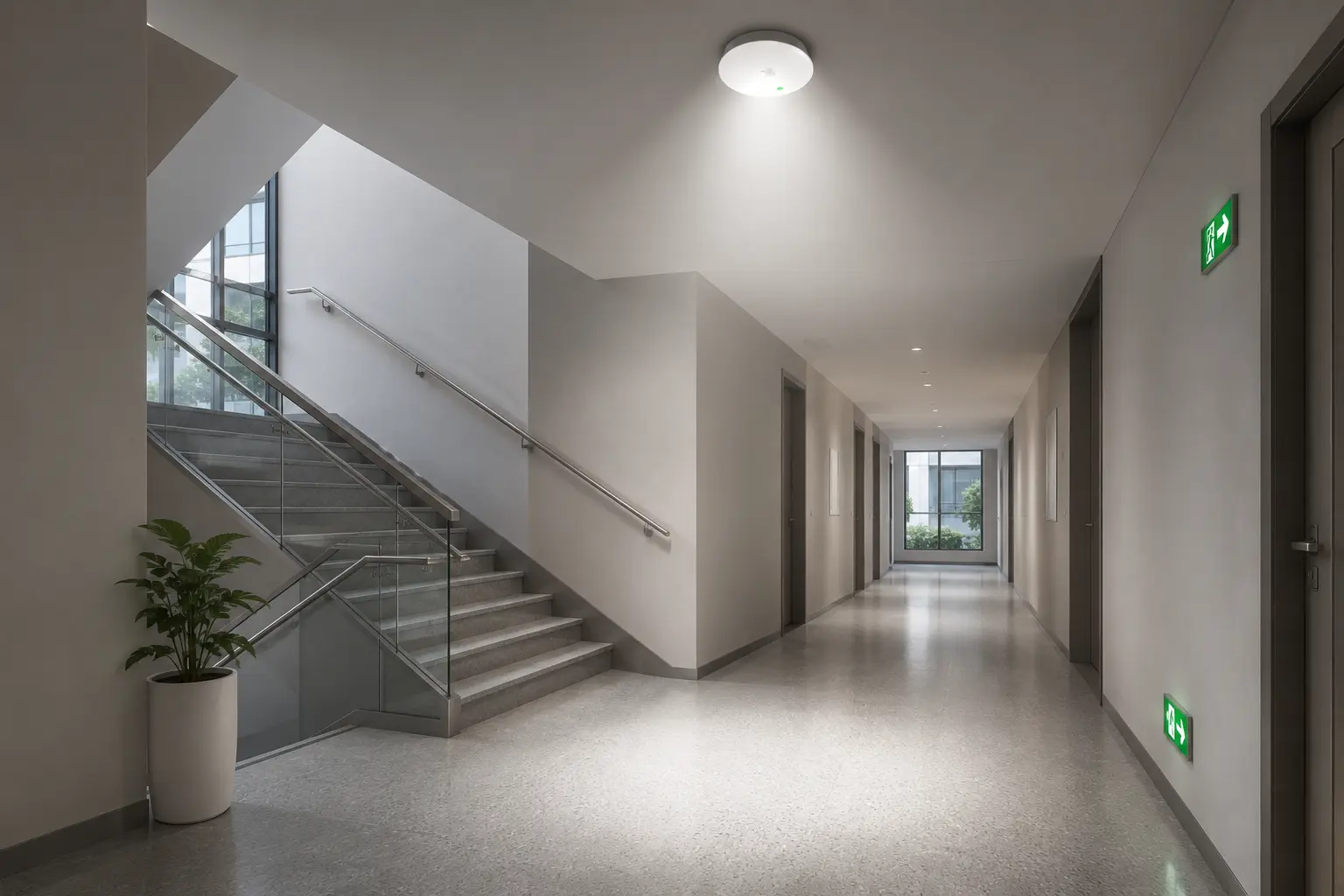

Product Applications
Suitable for corridors, escape routes, staircases and open areas in commercial, residential and public buildings.
Suitable Applications
> Corridors and escape routes
> Staircases and landings
> Hotels and apartment buildings
> Offices and public buildings
> Car parks and service areas
> Warehouses and industrial facilities
Frequently Asked Questions
Find answers to common questions about our IP65 Round LED Emergency Light
1. What is the difference between the open-area lens and corridor lens?
The open-area lens provides wider light distribution for open spaces, while the corridor lens creates an elongated beam pattern for escape routes and narrow passageways.
2. Is this emergency light maintained or non-maintained?
This model operates in non-maintained mode. The emergency LED switches on automatically when the mains power supply fails.
3. What emergency lumen outputs are available?
The fixture is available with 330lm and 400lm emergency output options.
4. How long does the emergency light operate after a power failure?
The emergency duration is up to 3 hours under standard operating conditions.
5. Does the fixture support self-test operation?
Yes. The fixture supports switchable self-test and manual-test operation.
6. Is the product suitable for damp or dusty environments?
The fixture has an IP65-rated housing, providing protection against dust and water ingress.
7. Can you provide OEM packaging?
Yes. OEM logo printing, product labels, instruction manuals and customized packaging can be provided according to the order quantity.
