IP66 Waterproof LED Emergency Exit Sign – Manual or Self-Test
150 lm / 300 lm emergency output, 450 lm optional, with 3-hour duration and maintained or non-maintained operation.
> Rotatable directional legends for multiple escape routes
> 150 lm / 300 lm output, with 450 lm optional
> Surface or recessed mounting
> IP66 and IK10 protection
> Internal clip-in legend design
> Compatible with standard BESA boxes
> Switchable manual-test and self-test functions
Factory-Direct
CE & RoHS
5 Years
OEM/ODM
Product Views & Mounting Options
Explore the fixture structure, mounting accessories, directional legends and integrated test controls.

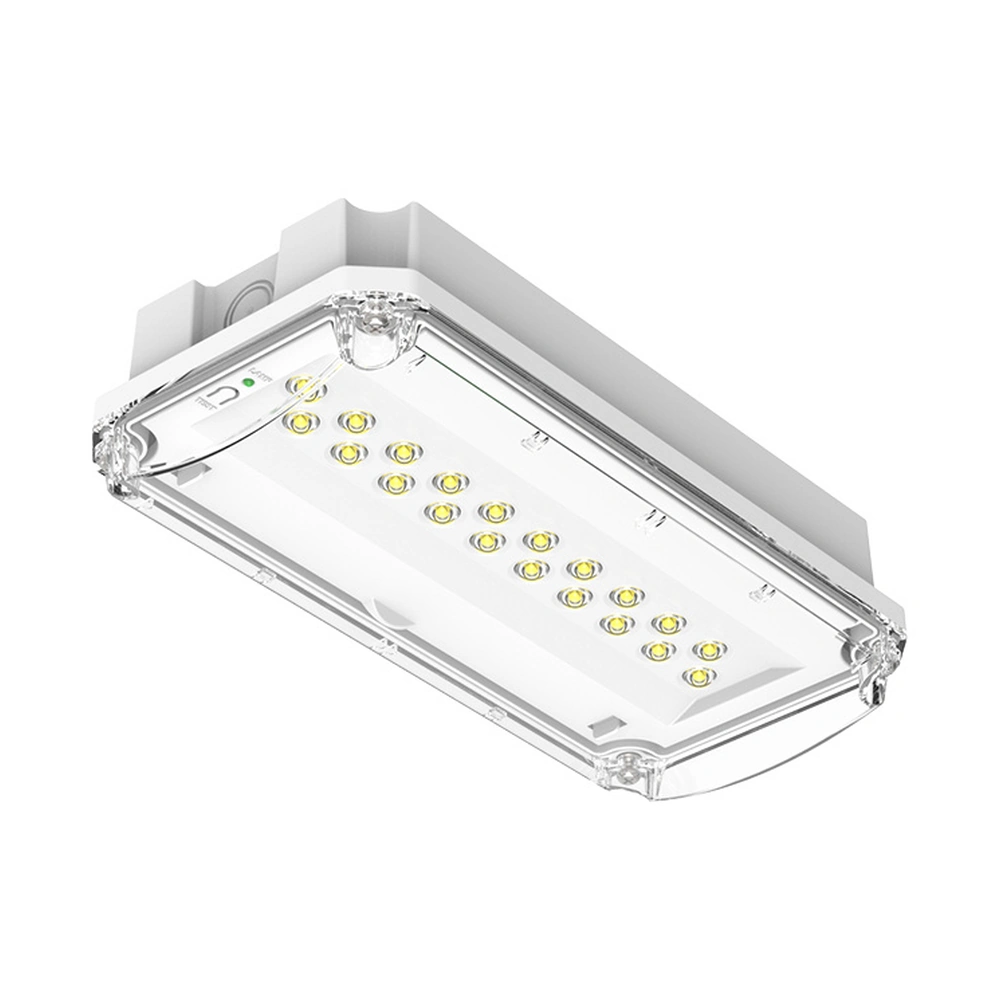

Front View

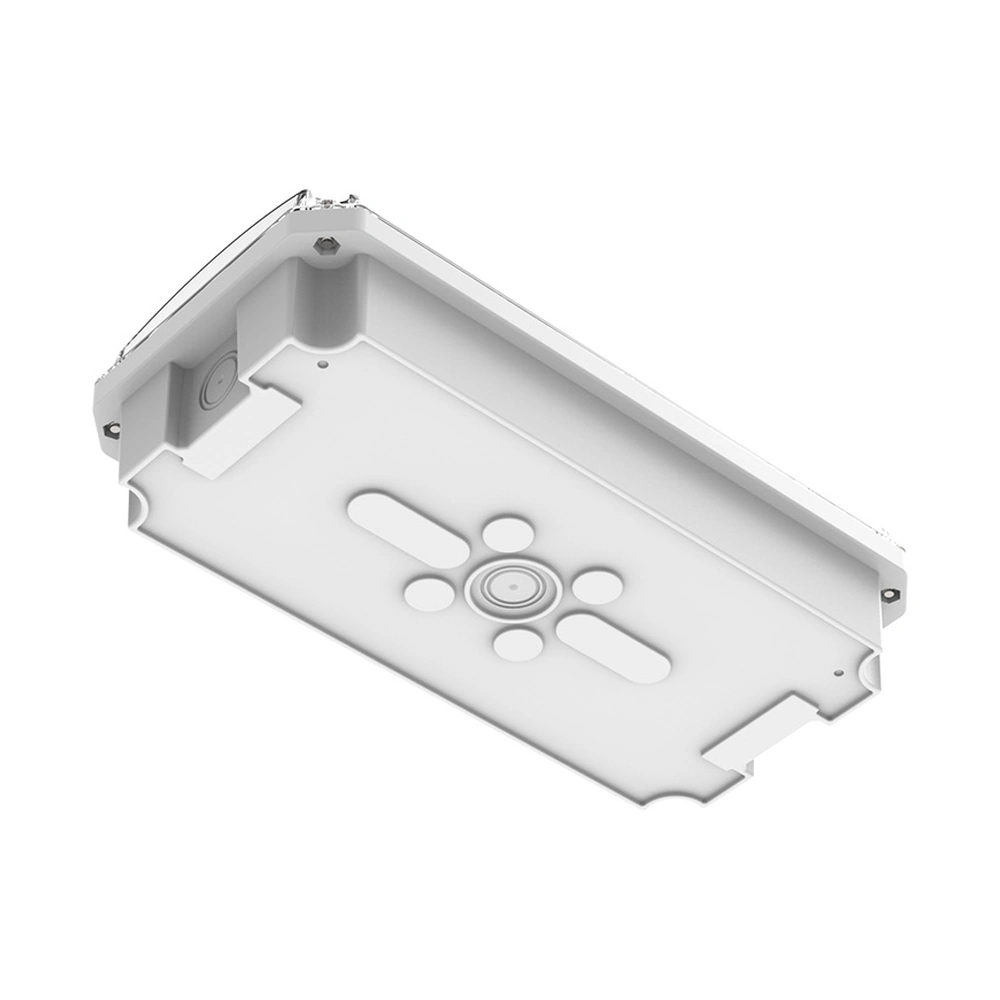

Base View

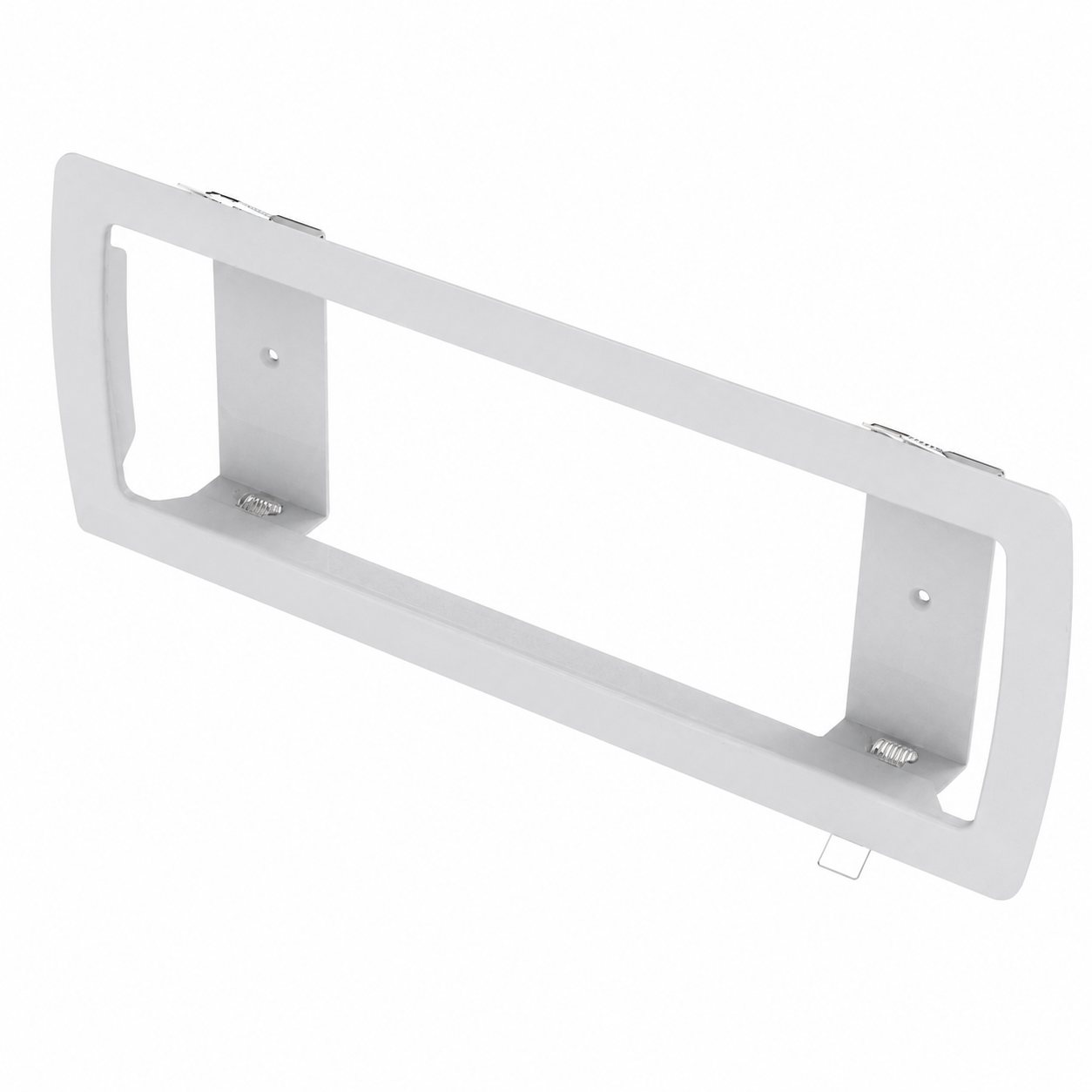

Optional Recessed Mounting Kit

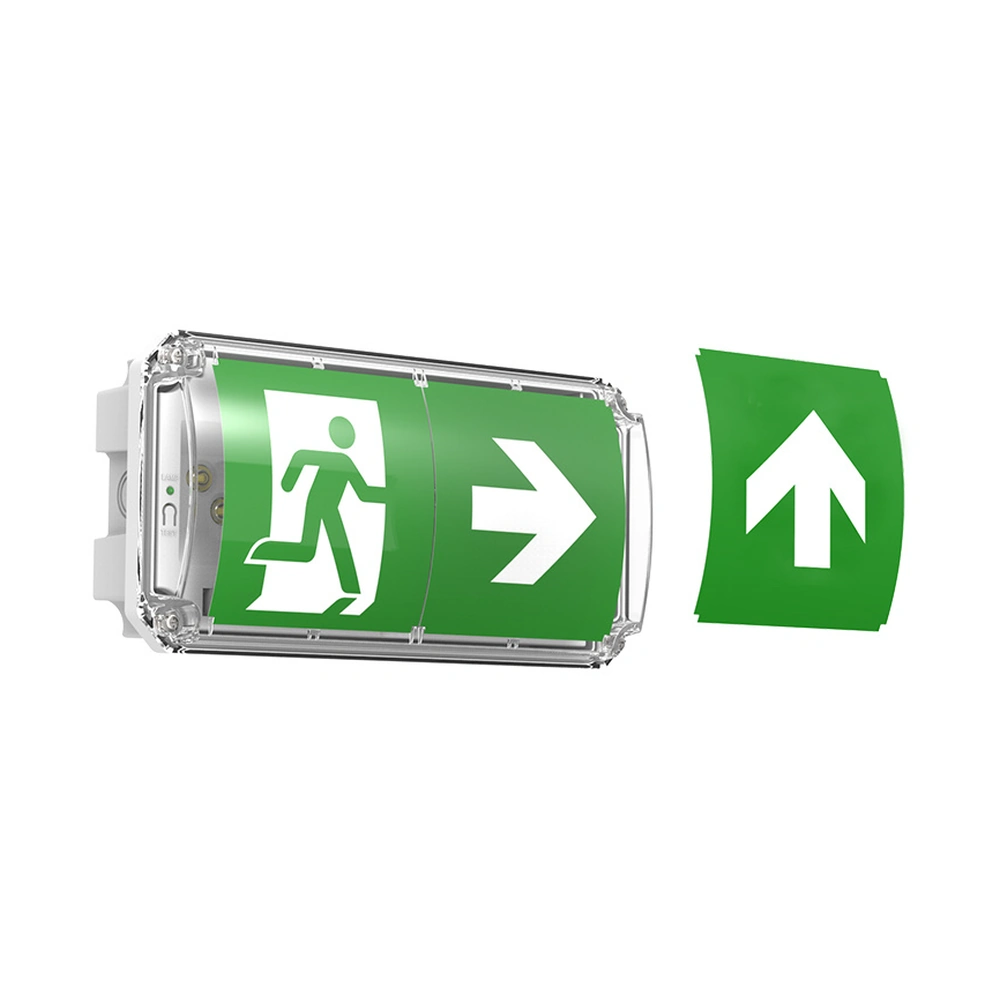

Interchangeable Directional Legends

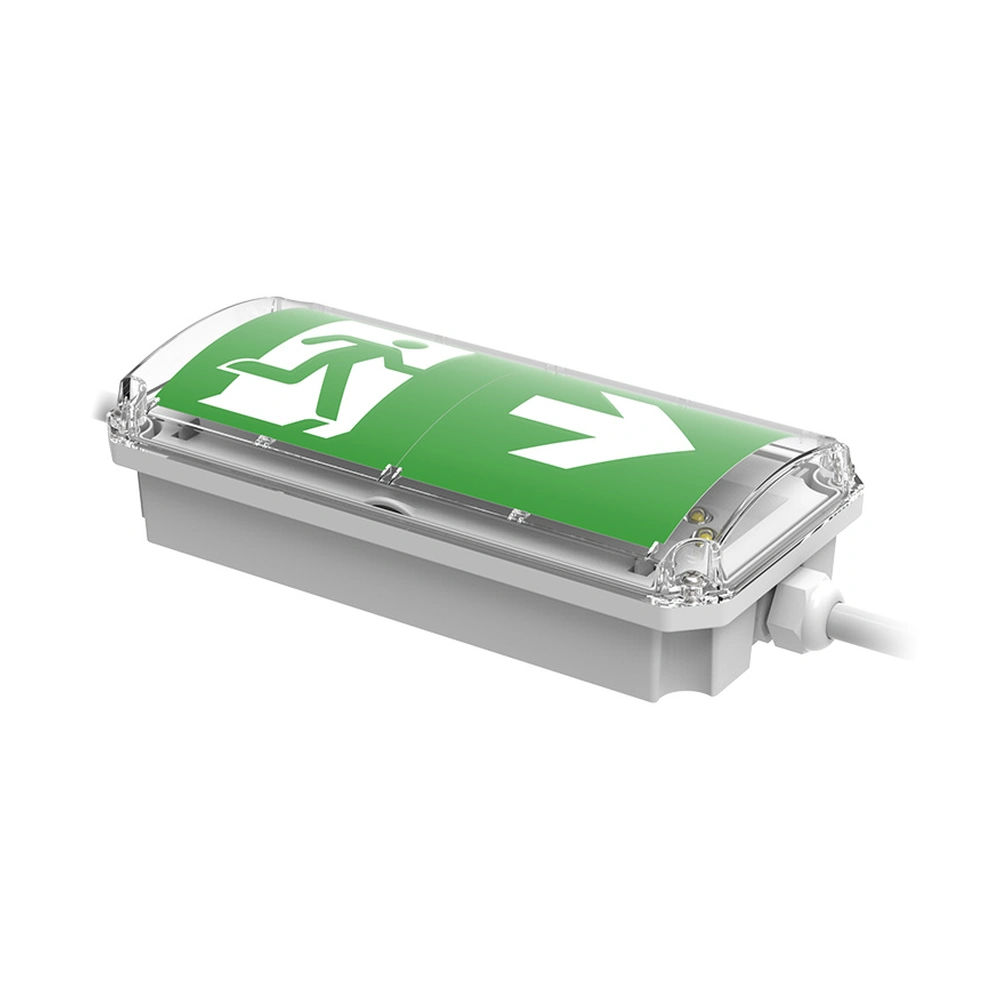

Side View with Legend

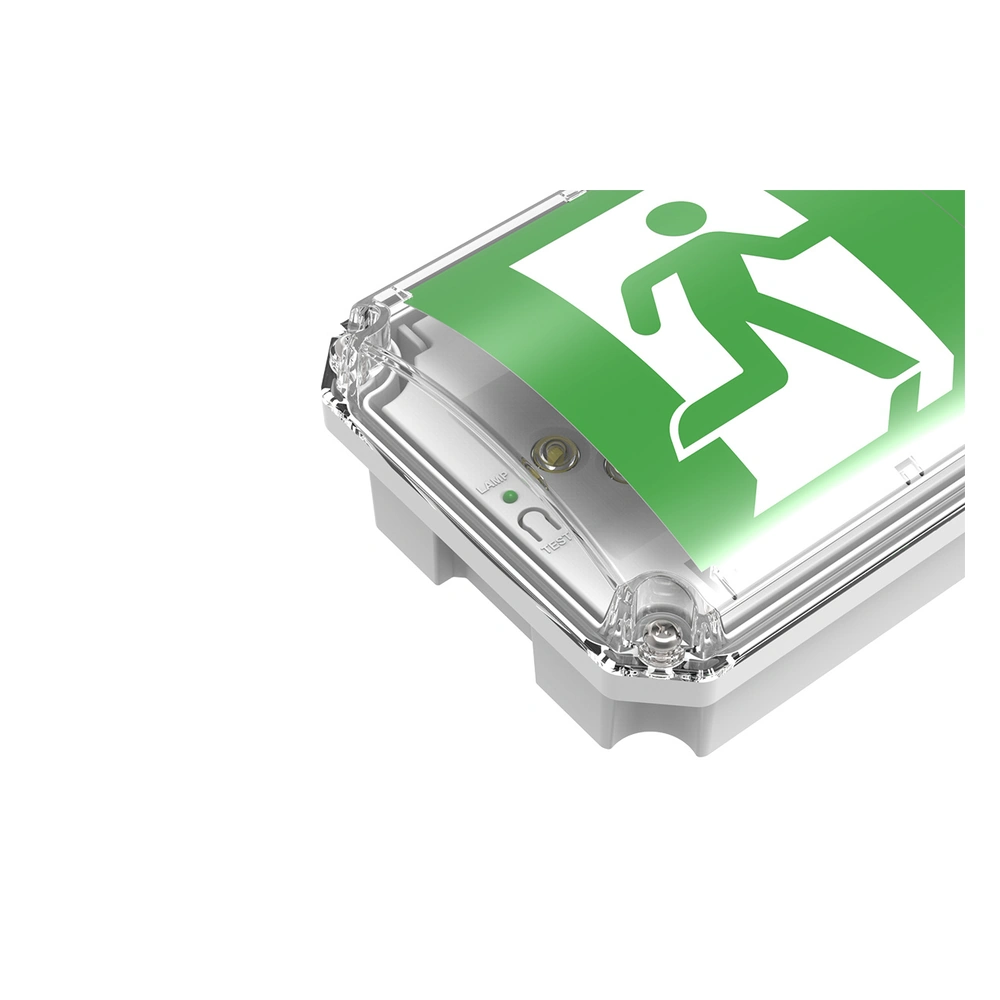

Test Button & Status Indicator
Key Features of the IP66 LED Emergency Exit Sign
Reliable emergency illumination, flexible installation and convenient testing for commercial, industrial and public buildings.
IP66 & IK10 Protection
Dust-tight IP66 housing and IK10 impact resistance for demanding commercial, industrial and semi-outdoor installations.
Multiple Emergency Output Options
Available in 150 lm and 300 lm versions, with an optional 450 lm version for higher emergency illumination requirements.
3-Hour LiFePO4 Backup
Reliable 3-hour emergency operation with a long-life LiFePO4 battery.
Manual-Test or Self-Test Versions
Manual-test and self-test versions are available to meet different project and maintenance requirements.
Surface or Recessed Mounting
Surface mounting is standard, while an optional recessed kit provides a cleaner integrated installation.
Rotatable Clip-In Exit Legends
Internal clip-in directional legends can be rotated or replaced to suit different escape routes.
Technical Specifications
Specification
Details
Product Type
IP66 LED emergency exit sign
Item No
ML-EM105
Housing Material
PC
Maximum Input Power
3.5W / 4.5W
Emergency Power
1W / 1.8W
Emergency Luminous Flux
150lm / 300lm / 450lm
Battery
LiFePO4 3.2V 1.5Ah / 6.4V 1.5Ah
Input Voltage
AC 220-240V, 50/60Hz
Color temperature
6500K
Emergency Duration
3 hours
Operating Mode
Maintained / Non-maintained
Testing Function
Manual test / Self-test optional
IP Rating
IP66
Impact Rating
IK10
Mounting
Surface mounted / Recessed
Product Size
252 x 123 x 65mm
Warranty
5 years
Certifications
CB, CE, UKCA, RoHS, REACH
Typical Applications
Corridors, stairways, hotels, offices, schools, hospitals, warehouses, utility rooms and covered parking areas.

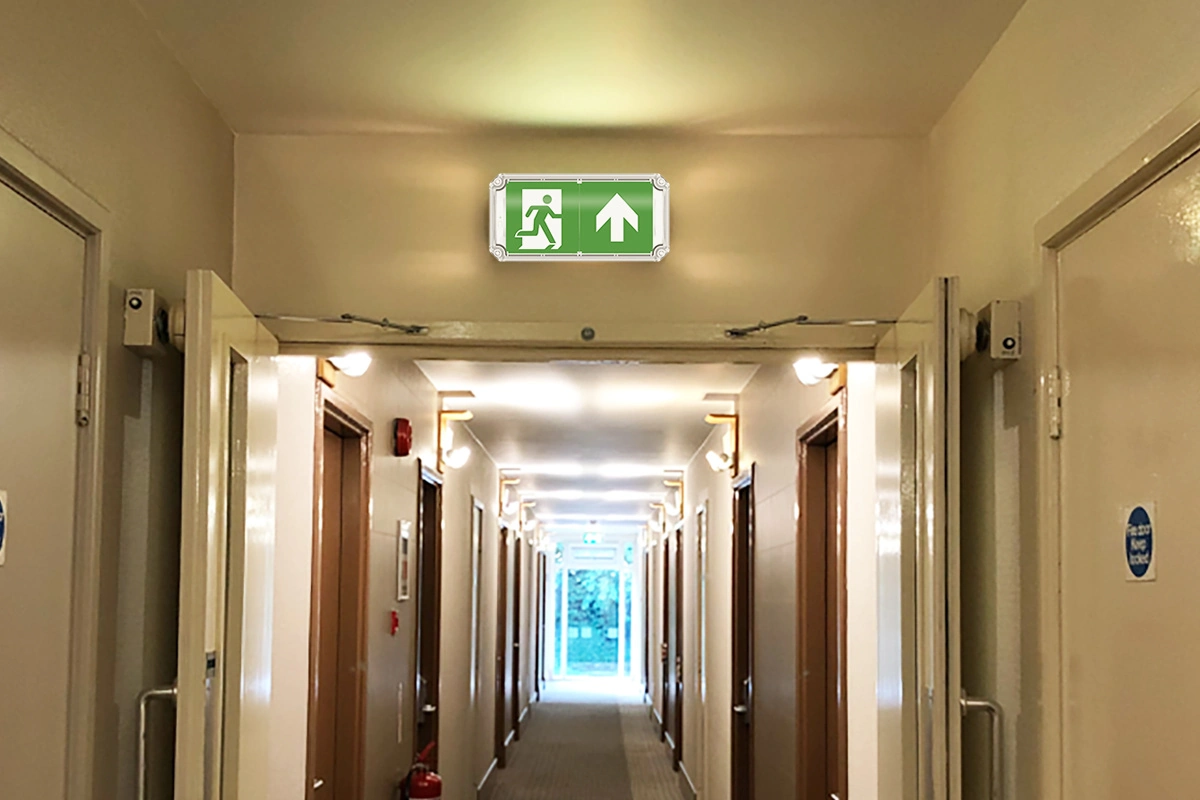

Surface Mounting
The emergency exit sign can be mounted directly onto the wall or ceiling using the integrated rear mounting points.
Suitable for:
> Existing buildings
> Concrete walls and ceilings
> Industrial corridors
> Utility rooms
> Parking areas

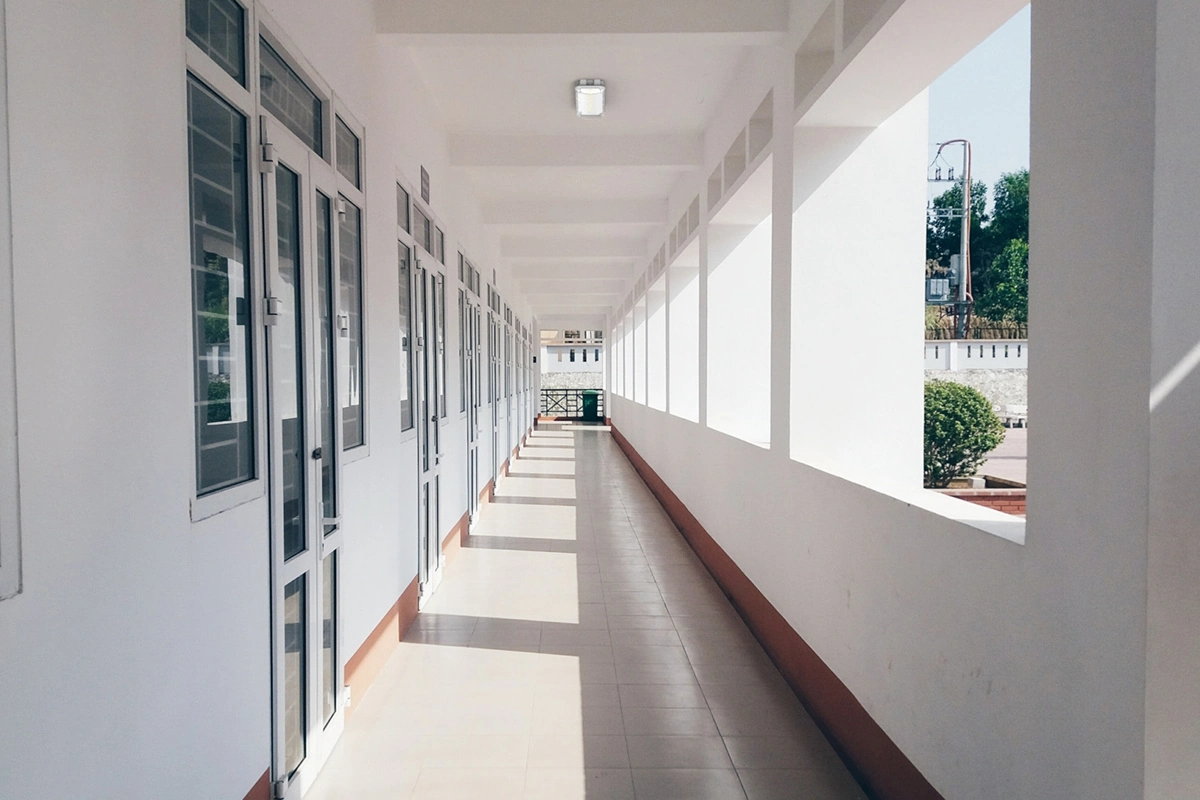

Recessed Mounting
An optional recessed mounting kit allows the product to sit neatly within the mounting surface.
Suitable for:
> Hotels
> Offices
> Schools
> Hospitals
> Modern commercial interiors
Frequently Asked Questions
Find answers to common questions about our IP66 LED emergency exit sign.
1. Is this emergency exit sign suitable for outdoor use?
The fitting has an IP66-rated housing and can be used in covered outdoor or semi-outdoor areas. For fully exposed outdoor installations, the installation position, cable entry and sealing method should be checked according to the project conditions.
2. Can it be installed both on the surface and recessed?
Yes. The standard fitting supports surface installation, while recessed installation is available using the optional recessed mounting kit.
3. Is the recessed mounting kit included?
The recessed mounting kit is normally supplied as an optional accessory. It can be packed together with the fitting according to the order requirement.
4. What is the emergency duration?
The standard emergency duration is 3 hours.
5. Is a self-test version available?
Yes. Both manual-test and self-test versions are available.
6. What is the difference between maintained and non-maintained operation?
A maintained exit sign stays illuminated during normal mains operation. A non-maintained version switches on only when the mains power fails.
7. Can the exit direction be changed?
Yes. The clip-in legends can be changed or rotated to support different escape directions.
